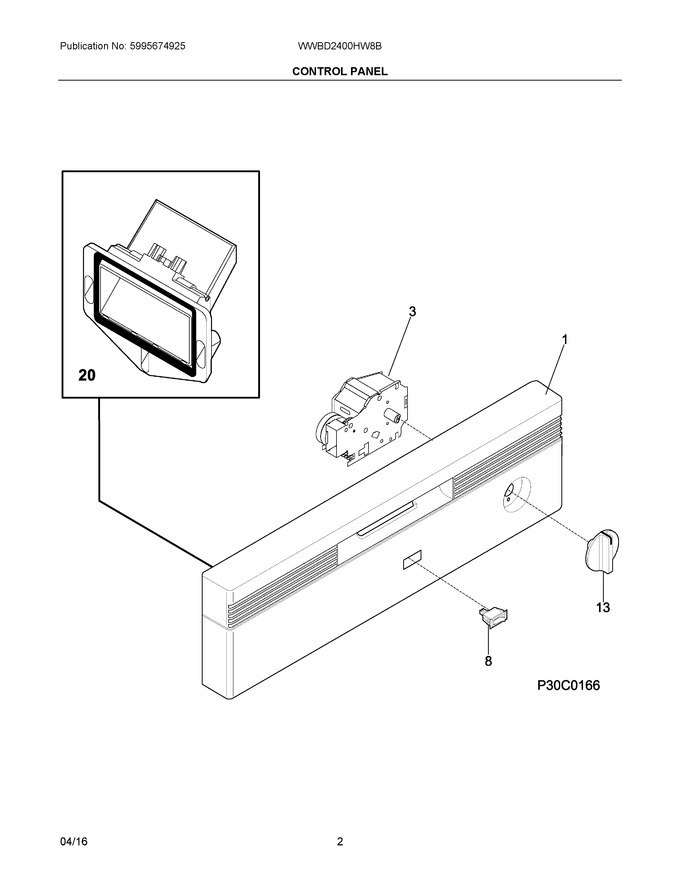

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154667447		Panel, Control, White, W/graphics				$ 99.46
3	807387501		Timer				$ 316.64
8	154240401		Switch, Rocker/selector, White				$ 59.43
13	154338301		Knob, Timer, White				$ 75.60
20	154433001		Vent Assy, Static Dry				$ 50.82
NI	808612202		Energy Guide		Appelez-nous	-
NI	808421301		Harness, Wiring, Main		Appelez-nous	-
NI	154783101		Screw, Plt, 8-10			Immediately	$ 7.09
NIA	154095701		Screw, Thread Rolling, (2), Timer				$ 10.34
NIA	154793401		Screw, Dry Duct, (3)				$ 7.09
NIB	154131204		Shield, Timer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
