Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8101P573-60 Instructions Installation Appelez-nous -
1 9762761 Safer Cooking Tips (english) Appelez-nous -
1 W10065852 Safer Cooking Tips (french) Appelez-nous -
1 W10381533 Use & Care Guide Appelez-nous -
2 2001F300-09 Cooktop (black) Appelez-nous -
2 2001F301-50 Cooktop (stainless) Appelez-nous -
3 2616F312-70 Panel, Manifold Appelez-nous -
4 7733P200-60 Knob, Burner (lr, Rr) Appelez-nous -
4 74003942 Knob, Burner (front)   (Replaces: 7733P199-60) Special Order $ 17.80

5 3609F006-70 Guard, Fabric Appelez-nous -
6 7518P417-60 Grate, Burner Special Order $ 83.63

7 74003944 Knob, Ignitor   (Replaces: 7739P117-60) In-Stock Immediately $ 15.89

8 WPW10308285 Bushing, Grate   (Replaces: W10308285) Special Order $ 6.98

9 3608W051-70 Trim, Top Right Appelez-nous -
10 3608W052-70 Trim, Top Left Appelez-nous -
11 3608F074-70 Trim, Top Rear Appelez-nous -
12 8003P008-60 Bumper Appelez-nous -
13 7101P229-60 Screw Appelez-nous -
14 4011W355-51 Box, Burner Appelez-nous -
15 WPW10068250 Screw   (Replaces: 7101P141-60) Special Order $ 3.66


    View Diagram in Separate Window     Print Icon   Print Part List

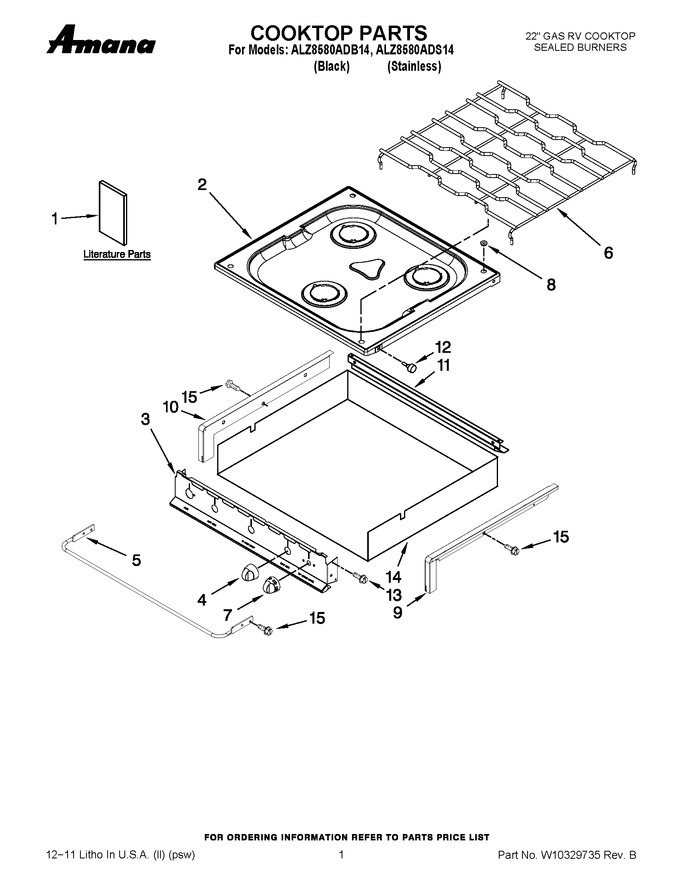

Diagram for ALZ8580ADS14
