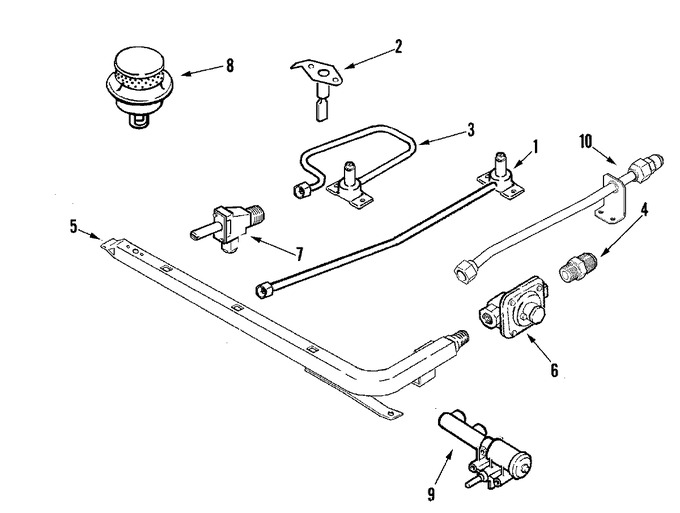

01 - Gas Controls
02 - Top & Burner Box
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74003931 | Fitting, Orifice (rear) | 10 |
|
- | ||||
| 2 | 74004053 | Igniter, Top Burner | 10 |
|
Immediately | $ 24.25 | |||
| 3 | 74003930 | Fitting, Orifice (frt) | 10 |
|
- | ||||
| 4 | 74004234 | Fitting, Half Union | 10 |
|
$ 49.91 | ||||
| 5 | 7513P476-60 | Pipe, Manifold (rv) (Replaces: 74011041) | 12 |
|
- | ||||
| 5 | 74004642 | Pipe, Manifold | 10 |
|
- | ||||
| 6 | 74004235 | Regulator, Pressure | 10 |
|
- | ||||
| 7 | 12002247 | Kit, Valve & Screw (mueller) | 11 |
|
- | ||||
| 7 | 12002248 | Kit, Valve & Screw (mueller) | 11 |
|
- | ||||
| 7 | 12002277 | Screw, Valve (Replaces: 74009427) | 11 |
|
$ 272.78 | ||||
| 7 | 71003231 | Screw, Valve | 10 |
|
- | ||||
| 7 | 74009428 | Valve, Burner (mueller) | 11 |
|
- | ||||
| 7 | 74009429 | Valve, Burner (mueller) | 11 |
|
- | ||||
| 7 | 74011039 | Valve, Burner (6500) | 12 |
|
- | ||||
| 7 | 74011040 | Valve, Burner (9100) | 12 |
|
- | ||||
| 7 | 74004644 | Valve, Top Burner | 10 |
|
- | ||||
| 7 | 74004643 | Valve, Top Burner | 10 |
|
- | ||||
| 8 | 74003967 | Sealed Burner Assy(blk-rv)subs | 10 |
|
- | ||||
| 9 | 74003946 | Igniter, Top Burner | 10 |
|
- | ||||
| 9 | 74003947 | Wires, Igniter | 10 |
|
- | ||||
| 10 | 74004641 | Fitting, Copper Tubing | 10 |
|
- | ||||
| 10 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 |
