SELECT A DIAGRAM
01 - Gas Controls/body
02 - Supplemental Information

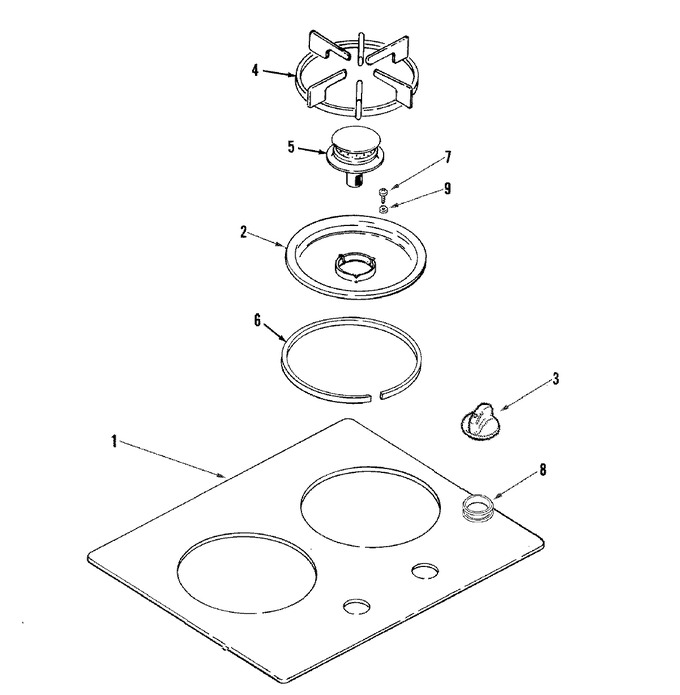

03 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74007654 | Glass, Top (blk) | 10 |
|
- | ||||
| 2 | 74007656 | Bowl, Drip | 10 |
|
- | ||||
| 3 | 74007362 | Knob, Valve (blk) | 10 |
|
$ 16.49 | ||||
| 4 | 74007663 | Grate | 10 |
|
- | ||||
| 5 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 5 | WP3412D024-09 | Burner, Sealed (blk) (Replaces: 12500050) | 10 |
|
Immediately | $ 92.69 | |||
| 6 | 12400041 | Seal, Tape | 10 |
|
$ 48.39 | ||||
| 7 | 7101P314-60 | Screw | 10 |
|
- | ||||
| 8 | 8008P039-60 | Grommet, Glass | 10 |
|
- | ||||
| 9 | W10896751 | Washer (Replaces: 7109P036-60) | 10 |
|
- |
