SELECT A DIAGRAM
01 - Body/cavity

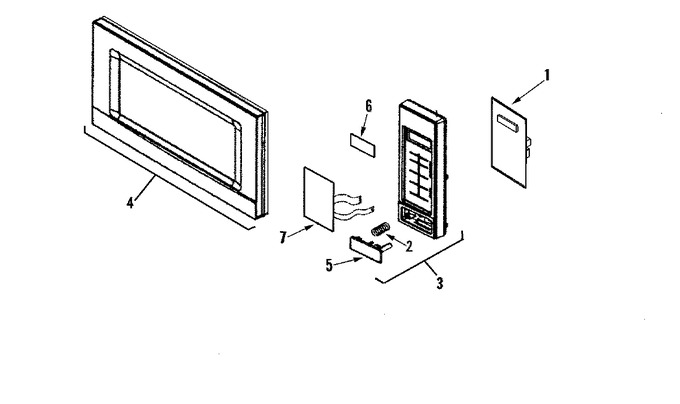

02 - Control Panel/door Assembly
03 - Internal Controls/latch Asy./base
04 - Supplemental Inforamtion
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | RAS-5200-00 | Pcb | 10 |
|
- | ||||
| 1 | W10261245 | Pcb | 14 |
|
- | ||||
| 2 | DE61-70026A | Spring-button | 10 |
|
Immediately | $ 0.85 | |||
| 3 | DE94-01387C | Asy-control Panel (stl) | 10 |
|
- | ||||
| 3 | W10261265 | Asy-control Panel (stl) | 14 |
|
- | ||||
| 4 | DE94-01342C | Asy-door (stl) | 10 |
|
- | ||||
| 5 | DE64-01502B | Push-button (blk) | 10 |
|
- | ||||
| 6 | DE67-40179A | Window-display | 10 |
|
- | ||||
| 7 | W10261275 | Switch-membrane (blk) | 14 |
|
- | ||||
| 7 | DE34-00230B | Switch-membrane (blk) | 10 |
|
- |
