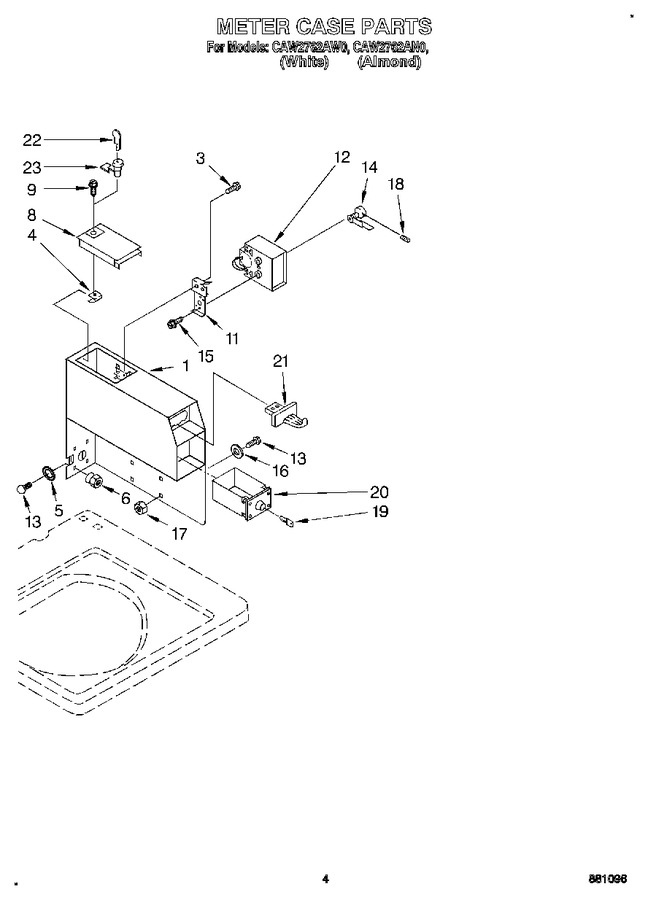

03 - Meter Case


04 - Rear Panel


05 - Agitator, Basket And Tub


06 - Miscellaneous


07 - Brake, Clutch, Gearcase, Motor And Pump


08 - Machine Base


09 - Wiring Harness


10 - Brake And Drive Tube


11 - Gearcase


12 - Water System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3363390		Meter Case (for White Model)		Appelez-nous	-
1	3363391		Meter Case (for Almond Model)		Appelez-nous	-
3	3363432		Screw, 1/4 X 20 X 3/8		Appelez-nous	-
4	WP90406		Nut, Cage   (Replaces: 90406)				$ 7.33
5	3363435		Washer-lock		Appelez-nous	-
6	3363433		Nut		Appelez-nous	-
8	W11283272		Door, Service (for White Model)   (Replaces: 3363386)				$ 95.29
8	3363387		Door, Service (for Almond Model)		Appelez-nous	-
9	358409		Screw & Washer		Appelez-nous	-
11	3363398		Bracket, Timer		Appelez-nous	-
12	3354024		Timer, 60 Hz.		Appelez-nous	-
13	3363434		Bolt, 5/16-18x3/4		Appelez-nous	-
14	WP354987		E-ring   (Replaces: 354987)			Immediately	$ 10.58
14	385571		Clutch, Timer				$ 42.89
15	WP356418		Screw, Timer   (Replaces: 96435)				$ 7.13
16	WP348197		Washer   (Replaces: 348197)				$ 6.47
17	90984		Nut		Appelez-nous	-
18	98654		Screw, Set		Appelez-nous	-
