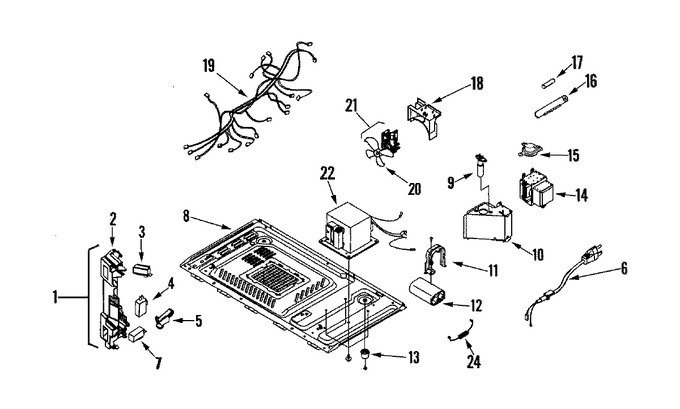

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE96-00115A | Assy Body Latch | 10 |
|
- | ||||
| 2 | DE72-00138A | Body-latch | 10 |
|
- | ||||
| 3 | 3405-001033 | Switch-micro | 10 |
|
Immediately | $ 17.58 | |||
| 4 | 3405-001034 | Switch, Micro (125/250 Vac) | 10 |
|
Immediately | $ 14.85 | |||
| 5 | DE66-00088B | Lever, Switch | 10 |
|
- | ||||
| 6 | DE39-00040E | Assy Power Cord | 10 |
|
- | ||||
| 7 | 3405-001042 | Switch-micro | 10 |
|
- | ||||
| 8 | DE61-00557A | Base-plate | 10 |
|
- | ||||
| 9 | WP8183592 | Lamp-incandescent (Replaces: 4713-001102) | 10 |
|
$ 41.09 | ||||
| 10 | DE71-60457B | Cover-air | 10 |
|
- | ||||
| 11 | DE61-00139A | Bracket-hvc | 10 |
|
- | ||||
| 12 | 2501-001035 | C-oil | 10 |
|
Immediately | $ 101.91 | |||
| 12 | DE91-70063D | Diode-rectifier (Replaces: Y0402001554) | 10 |
|
Immediately | $ 15.89 | |||
| 13 | DE61-40066A | Foot | 10 |
|
$ 17.58 | ||||
| 14 | WPW10126794 | Assy-magnetron:om75s(31)ess (Replaces: YOM75S31ESS) | 10 |
|
$ 282.22 | ||||
| 15 | DE47-20173A | Thermostat | 10 |
|
$ 21.43 | ||||
| 16 | DE47-40025A | Holder, Fuse | 10 |
|
- | ||||
| 17 | 3601-001197 | Fuse-cartridge | 10 |
|
$ 18.00 | ||||
| 18 | DE71-00148A | Cover-blower | 10 |
|
- | ||||
| 19 | DE96-00382A | Harness, Wire | 10 |
|
- | ||||
| 20 | DE31-90057A | Blade-fan | 10 |
|
$ 17.58 | ||||
| 21 | DE96-00086B | Assy-motor Fan | 10 |
|
$ 52.70 | ||||
| 22 | DE26-00094A | Transformer, H.v. | 10 |
|
- |
