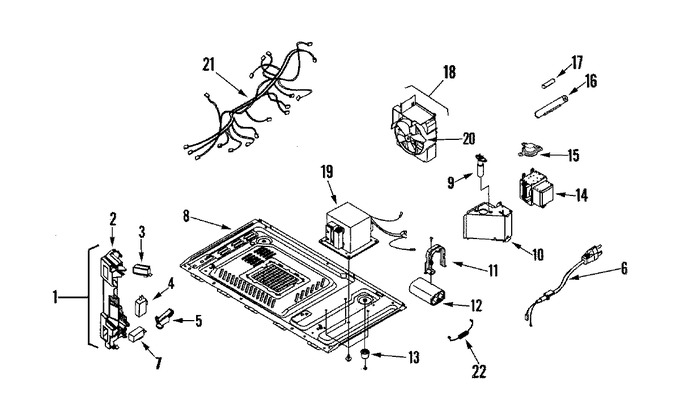

01 - Body/cavity
02 - Control Panel/door Assembly
03 - Internal Controls/latch Asy./base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10177944 | Manual, Use & Care | 13 |
|
- | ||||
| 1 | DE96-00120D | Assy Body Latch | 10 |
|
- | ||||
| 2 | DE72-00138A | Body-latch | 10 |
|
- | ||||
| 3 | 3405-001033 | Switch-micro | 10 |
|
Immediately | $ 17.58 | |||
| 4 | 3405-001034 | Switch, Micro (125/250 Vac) | 10 |
|
Immediately | $ 14.85 | |||
| 5 | DE66-00088A | Lever-switch | 10 |
|
- | ||||
| 6 | DE39-20146E | Assy Power Cord | 10 |
|
- | ||||
| 7 | 3405-001055 | Switch-micro | 10 |
|
$ 17.58 | ||||
| 8 | DE61-00557A | Base-plate | 10 |
|
- | ||||
| 9 | WP8183592 | Lamp-incandescent (Replaces: 4713-001102) | 10 |
|
$ 41.09 | ||||
| 10 | DE63-00208A | Cover-air | 10 |
|
- | ||||
| 11 | DE61-50106A | Bracket, Capacitor | 10 |
|
- | ||||
| 12 | 8206562 | Capacitor (Replaces: 2501-001016) | 10 |
|
Immediately | $ 108.83 | |||
| 13 | DE61-40066A | Foot | 10 |
|
$ 17.58 | ||||
| 14 | WPW10126794 | Magnetron (Replaces: W10126792) | 10 |
|
$ 282.22 | ||||
| 15 | DE47-20032B | Thermostat | 10 |
|
$ 17.58 | ||||
| 16 | DE47-40025A | Holder, Fuse | 10 |
|
- | ||||
| 17 | ABC20 | Cartridge, Fuse (Replaces: 3601-001198) | 10 |
|
Immediately | $ 10.31 | |||
| 18 | DE96-00305A | Fan Motor Assy | 10 |
|
- | ||||
| 19 | DE26-00094A | Transformer, H.v. | 10 |
|
- | ||||
| 20 | DE31-90057A | Blade-fan | 10 |
|
$ 17.58 | ||||
| 21 | DE39-00197A | Harness, Wire | 10 |
|
- | ||||
| 22 | DE91-70063D | Assy-h.v.d. (Replaces: DE91-70063A) | 10 |
|
Immediately | $ 15.89 |
