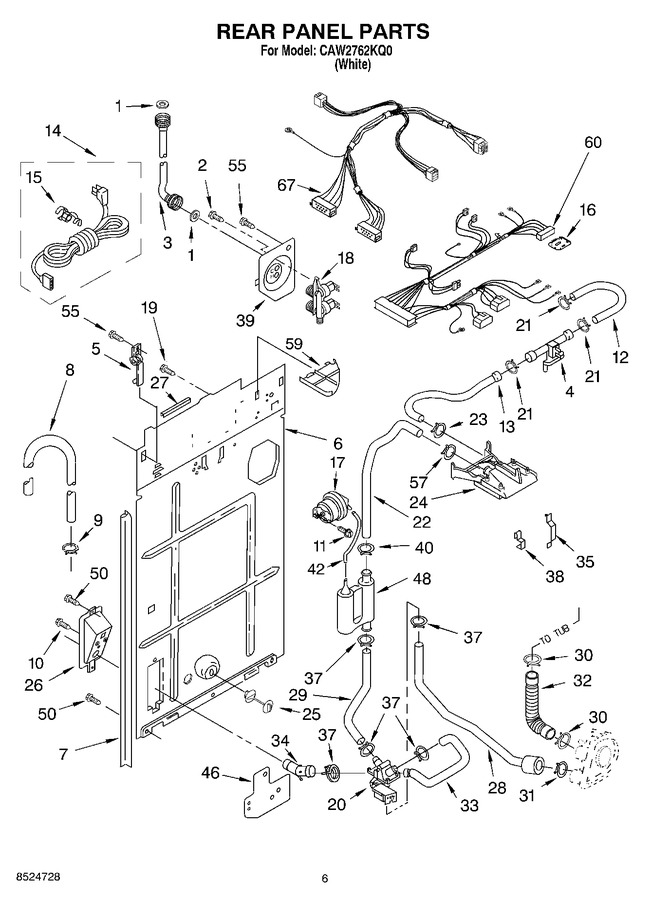

05 - Rear Panel


06 - Agitator, Basket And Tub


07 - Brake, Clutch, Gearcase, Motor And Pump


08 - Machine Base


09 - Wiring Harness


10 - Brake And Drive Tube


11 - Gearcase


12 - Water System


13 - Miscellaneous, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 6.93
2	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.07
3	WP3949380		Hose, Water Inlet (2) (blue Coupler)   (Replaces: 3949380)				$ 32.24
3	WP3949381		Hose, Water Inlet (2) (red Coupler)   (Replaces: 3949381)				$ 42.94
4	3352282		Sensor-etc-inline				$ 66.68
5	387402		Hinge, Console (2)				$ 5.84
6	285929		Panel, Rear   (Replaces: 3948886)				$ 292.04
7	WP62747		Pad, Rear Panel   (Replaces: 3354204)				$ 23.63
8	285666		Hose, Drain (9`- 9``) (not Included)   (Replaces: 661577)			Immediately	$ 56.11
8	WP96743		Hose, Drain (4`)   (Replaces: 96743)				$ 90.93
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 54.81
9	WP371502		Clamp, Hose   (Replaces: 371507)				$ 10.38
10	3352299		Screw		Appelez-nous	-
11	WP3351614		Screw, 10-24 X 3/8   (Replaces: 3351614)			Immediately	$ 6.26
12	3363516		Hose, Sensor (upper)		Appelez-nous	-
13	3363509		Hose, Sensor (lower)		Appelez-nous	-
14	285928		Cord, Power   (Replaces: 3359548)				$ 118.00
15	W11733005		Strain Relief, Power Cord To Rear Panel   (Replaces: 63848)				$ 11.64
16	3407125		E.t.c. Control		Appelez-nous	-
17	3952709		Pressure Switch		Appelez-nous	-
18	285805		Valve, Water Mixing   (Replaces: 3955673)			Immediately	$ 49.57
19	WP3390631		Screw, 10-24 X 3/8 (2)   (Replaces: 62863)				$ 7.04
20	3358559		Valve, Two-way				$ 122.77
21	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 7.56
22	3358555		Hose, Air-dome To Vacuum Break		Appelez-nous	-
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.56
24	3358551		Break, Vacuum				$ 32.74
25	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 17.01
26	3976335		Bracket, Valve Mounting		Appelez-nous	-
27	303294		Edge Protector (2)		Appelez-nous	-
28	8314849		Hose, Pump To Two-way Valve		Appelez-nous	-
29	3358563		Hose/two-way Valve To Air Dome				$ 9.74
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.03
31	WP356138		Clamp, Hose   (Replaces: 3366912)			Immediately	$ 7.67
32	285871		Hose, Pump To Tub   (Replaces: 3951449)			Immediately	$ 24.01
33	3358564		Hose-two Way Valve/ To Drain				$ 10.22
34	3976337		Connector, Hose		Appelez-nous	-
35	8054658		Clip, Harness		Appelez-nous	-
37	WP285655		Clamp, Hose   (Replaces: 370445)			Immediately	$ 7.55
38	8282518		Clip, Harness		Appelez-nous	-
39	285930		Plate, Mixing Valve   (Replaces: 3347682)				$ 67.10
40	3363365		Clamp, Hose				$ 9.68
42	WP353244		Hose, Pressure Switch   (Replaces: 8316037)			Immediately	$ 53.94
46	3948552		Shield, Valve				$ 7.81
48	3948812		Air Dome		Appelez-nous	-
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
55	WP488729		Screw, Hinge To Rear Panel   (Replaces: 3390647)			Immediately	$ 7.01
57	3363365		Clamp, Hose   (Replaces: 3358557)				$ 9.68
59	3348424		Shield, Suds		Appelez-nous	-
60	3954780		Harness, Wiring (for Detail See Page 12.) Also See Clips.		Appelez-nous	-
67	3954900		Harness, Timer		Appelez-nous	-
