SELECT A DIAGRAM

01 - Body/cavity/elements


02 - Control Panel/door Assembly

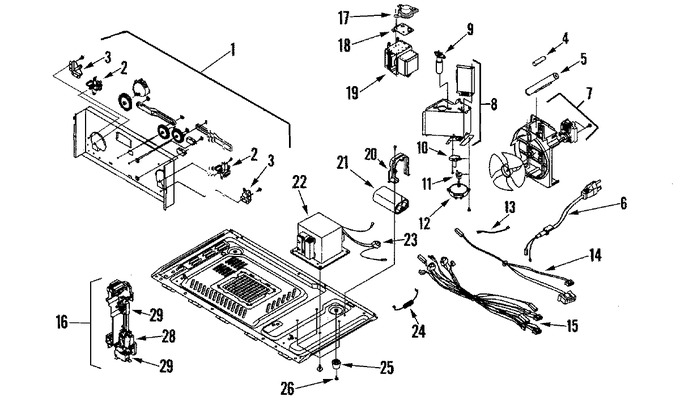

03 - Internal Controls/latch Asy/base


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE97-00298A		Assy-swing Motor	10	Appelez-nous	-
2	DE61-00297A		Holder-heater	10	Appelez-nous	-
3	DE61-00291A		Support-bushing	10	Appelez-nous	-
4	ABC20		Cartridge, Fuse   (Replaces: 3601-001198)	10		Immediately	$ 10.31
5	DE47-40025A		Holder, Fuse	10	Appelez-nous	-
6	DE96-00234A		Assy-power Cord	10	Appelez-nous	-
7	DE96-00233A		Assy-motor Fan	10	Appelez-nous	-
8	DE97-00111A		Assy-damper Sub	10	Appelez-nous	-
9	4713-001012		Lamp-incandescent	10			$ 40.81
10	3405-001034		Switch, Micro (125/250 Vac)	10		Immediately	$ 14.85
11	DE66-00116A		Cam-motor	10	Appelez-nous	-
12	DE31-10104A		Motor-synchronous	10	Appelez-nous	-
13	DE96-00217A		Assy-wire Harness-c	10	Appelez-nous	-
14	DE39-00344A		Wire Harness-b	10	Appelez-nous	-
15	DE96-00381A		Harness, Wire	10	Appelez-nous	-
16	DE66-00093B		Lever-switch(a)	10	Appelez-nous	-
16	DE72-00137B		Latch-body	10	Appelez-nous	-
16	DE66-00094B		Lever-switch(b)	10	Appelez-nous	-
16	DE96-00120H		Assy Body Latch	10	Appelez-nous	-
17	DE47-20009A		Thermostat	10			$ 17.58
18	DE61-50490A		Bracket-tco	10			$ 1.66
19	WPW10126794		Magnetron   (Replaces: W10126792)	10			$ 282.22
20	DE61-50106A		Bracket, Capacitor	10	Appelez-nous	-
21	2501-001014		Capacitor	10	Appelez-nous	-
22	DE26-00088A		Transformer, H.v.	10	Appelez-nous	-
23	DE91-70063D		Assy-h.v.d.   (Replaces: DE91-70063A)	10		Immediately	$ 15.89
24	DE59-00002A		[fuji]diode-h.v	10		Immediately	$ 20.62
25	DE61-40066A		Foot	10			$ 17.58
26	DE60-60025A		Pin, Foot	10			$ 0.85
27	DE61-00279A		Base-plate	10	Appelez-nous	-
28	3405-001032		Switch-micro	10			$ 22.17
29	3405-001034		Switch, Micro (125/250 Vac)	10		Immediately	$ 14.85

    View Diagram in Separate Window       Print Part List
