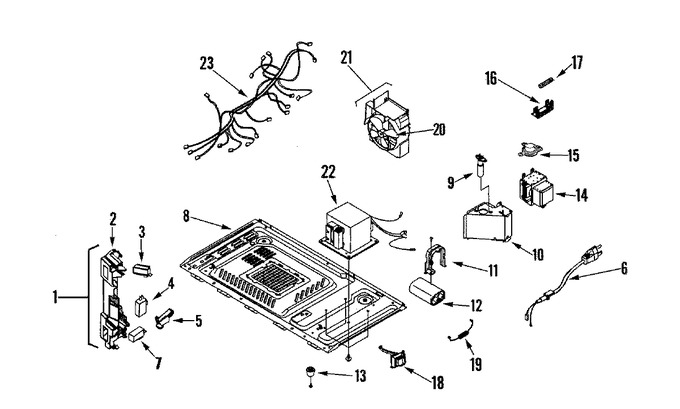

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body/cavity
02 - Control Panel/door Assembly
03 - Internal Controls/latch Asy./base
04 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE96-00115Q | Latch Body Assy | 10 |
|
- | ||||
| 2 | DE72-00138A | Body-latch | 10 |
|
- | ||||
| 3 | 3405-001055 | Switch-micro | 10 |
|
$ 17.58 | ||||
| 4 | 3405-001033 | Switch-micro | 10 |
|
Immediately | $ 17.58 | |||
| 5 | DE66-00117A | Latch-stopper | 10 |
|
- | ||||
| 5 | DE66-00088A | Lever-switch | 10 |
|
- | ||||
| 6 | DE39-00040B | Assy Power Cord | 10 |
|
- | ||||
| 7 | 3405-001042 | Switch-micro | 10 |
|
- | ||||
| 8 | DE80-10002M | Plate, Base | 10 |
|
- | ||||
| 9 | WP8183592 | Lamp-incandescent (Replaces: 4713-001102) | 10 |
|
$ 41.09 | ||||
| 10 | DE71-60458A | Cover-air | 10 |
|
$ 18.00 | ||||
| 11 | DE61-50106A | Bracket, Capacitor | 10 |
|
- | ||||
| 12 | 2501-001015 | Capacitor | 10 |
|
- | ||||
| 13 | DE61-40066A | Foot | 10 |
|
$ 17.58 | ||||
| 14 | WPW10126794 | Magnetron (Replaces: W10126799) | 10 |
|
$ 282.22 | ||||
| 15 | DE47-20009A | Thermostat | 10 |
|
$ 17.58 | ||||
| 16 | 3602-001025 | Holder, Fuse | 10 |
|
- | ||||
| 17 | ABC20 | Cartridge, Fuse (Replaces: 3601-001198) | 10 |
|
Immediately | $ 10.31 | |||
| 18 | DE26-20151A | Trans-l.v | 10 |
|
- | ||||
| 19 | DE91-70063D | Assy-h.v.d. (Replaces: DE91-70063A) | 10 |
|
Immediately | $ 15.89 | |||
| 20 | DE31-90051A | Blade-fan | 10 |
|
$ 6.95 | ||||
| 21 | DE31-00001G | Assy-motor Fan | 10 |
|
- | ||||
| 22 | DE26-00061B | Trans-h.v | 10 |
|
$ 181.92 | ||||
| 23 | DE96-00392A | Harness, Wire | 10 |
|
- |
