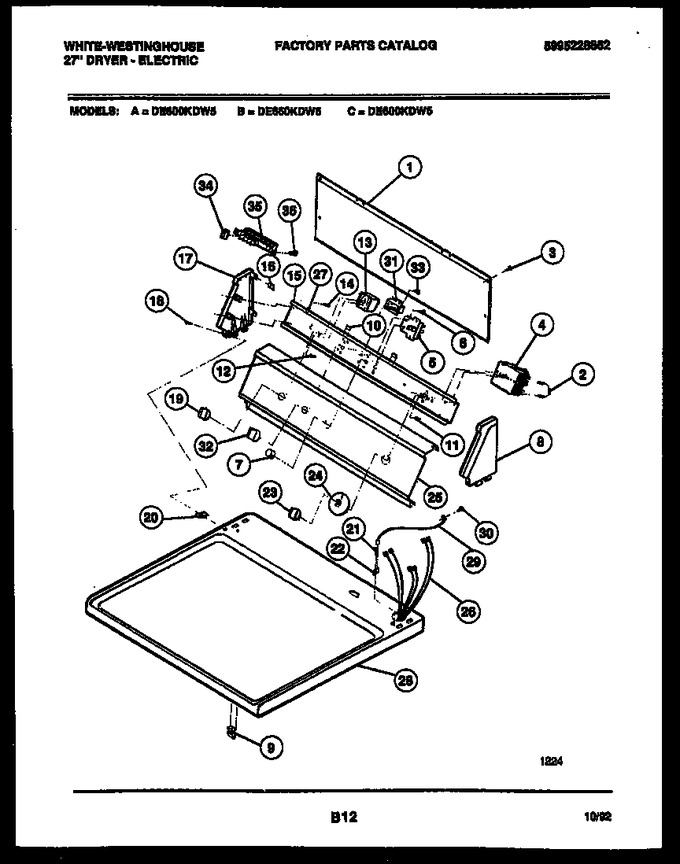

02 - Cabinet And Component Parts
03 - Door Parts
04 - Console And Control Parts
05 - Blower And Drive Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205838 | Back Cover |
|
- | |||||
| 2 | 3281110 | Resistor |
|
- | |||||
| 3 | 3261048 | Screw (4) |
|
- | |||||
| 4 | 131719100 | Timer (Replaces: 5303291433) |
|
Immediately | $ 269.37 | ||||
| 5 | 3201219 | Switch - Start |
|
- | |||||
| 6 | 08001544 | Screw |
|
- | |||||
| 7 | 3201221 | Push Button |
|
- | |||||
| 8 | 3205840 | End Cap-rh |
|
- | |||||
| 9 | 3205821 | Spring Catch (2) |
|
Immediately | $ 35.44 | ||||
| 10 | 5303281201 | Pad (2) |
|
- | |||||
| 11 | 218359202 | Screw (Replaces: 5303283289) |
|
$ 10.63 | |||||
| 12 | 3281101 | Screw (2) |
|
- | |||||
| 13 | 3281187 | Switch-selector |
|
- | |||||
| 14 | 3281035 | Screw (4) |
|
- | |||||
| 15 | 5303285145 | Mounting Bracket |
|
- | |||||
| 16 | 5308014350 | Clip (8) |
|
- | |||||
| 17 | 3205842 | End Cap-lh |
|
- | |||||
| 18 | 3281203 | Screw (2) |
|
- | |||||
| 19 | 5300633722 | Knob - Rotary |
|
- | |||||
| 20 | 3281192 | Grommet (2) |
|
- | |||||
| 21 | 08001689 | Screw |
|
- | |||||
| 22 | 5379171000 | Terminal |
|
- | |||||
| 23 | 08015435 | Knob-timer |
|
- | |||||
| 24 | 08015434 | Pointer |
|
- | |||||
| 25 | 3206029 | Trimplate |
|
- | |||||
| 26 | 131005800 | Harness |
|
- | |||||
| 27 | 3281200 | Clip-ground |
|
- | |||||
| 28 | 5303273261 | Top Panel White |
|
- | |||||
| 29 | 3201308 | Ground Wire |
|
- | |||||
| 30 | 3281120 | Ground Screw |
|
- | |||||
| *69621 | 5303210285 | Buzzer |
|
$ 65.78 | |||||
| *69621 | 5303015671 | Screw-buzzer |
|
- | |||||
| 26A | 3281103 | Wire Tie (3) (non-illustrated) |
|
- |
