SELECT A DIAGRAM
01 - Base/internal Controls
02 - Body/cavity
03 - Control Panel/door Assembly
04 - Convection Motor
SELECT A DIAGRAM
New Model Search:

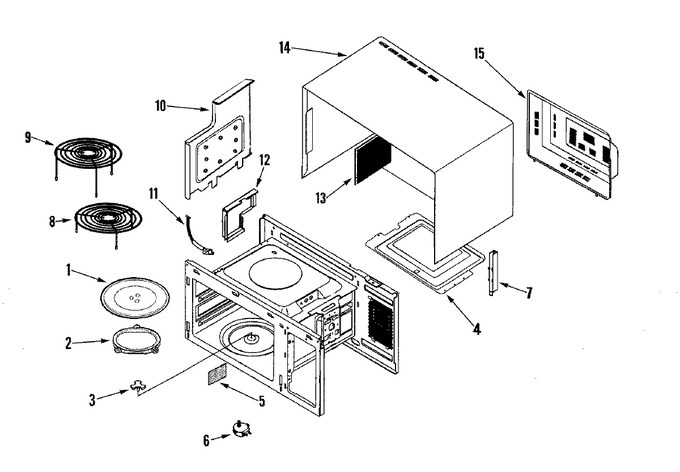

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE74-20002A | Tray-cooking | 10 |
|
$ 108.28 | ||||
| 2 | DE92-90189S | Assy-guide Roller | 10 |
|
$ 43.88 | ||||
| 3 | DE67-00121A | Coupler | 10 |
|
$ 3.64 | ||||
| 4 | DE61-00068A | Bracket-upper | 10 |
|
- | ||||
| 5 | DE71-60461A | Cover-ceiling | 10 |
|
$ 7.73 | ||||
| 6 | DE31-10104A | Motor-synchronous | 10 |
|
- | ||||
| 7 | DE61-50570B | Bracket-air Guide | 10 |
|
- | ||||
| 8 | DE97-00136B | Assy-wire Rack | 10 |
|
$ 62.83 | ||||
| 9 | DE97-00136E | Assy-wire Rack | 10 |
|
$ 76.95 | ||||
| 10 | DE71-00067A | Cover-adiabatic-l | 10 |
|
- | ||||
| 11 | DE32-10013A | Sensor-thermistor | 10 |
|
$ 53.69 | ||||
| 12 | DE96-00073A | Assy-guide Air | 10 |
|
- | ||||
| 13 | DE63-900351 | Cushion, Rubber | 10 |
|
- | ||||
| 14 | DE70-00163P | Panel, Outer (blk) | 10 |
|
- | ||||
| 15 | DE71-60386A | Cover-back | 10 |
|
- |
