01 - Cover Sheet
02 - Top And Control Parts

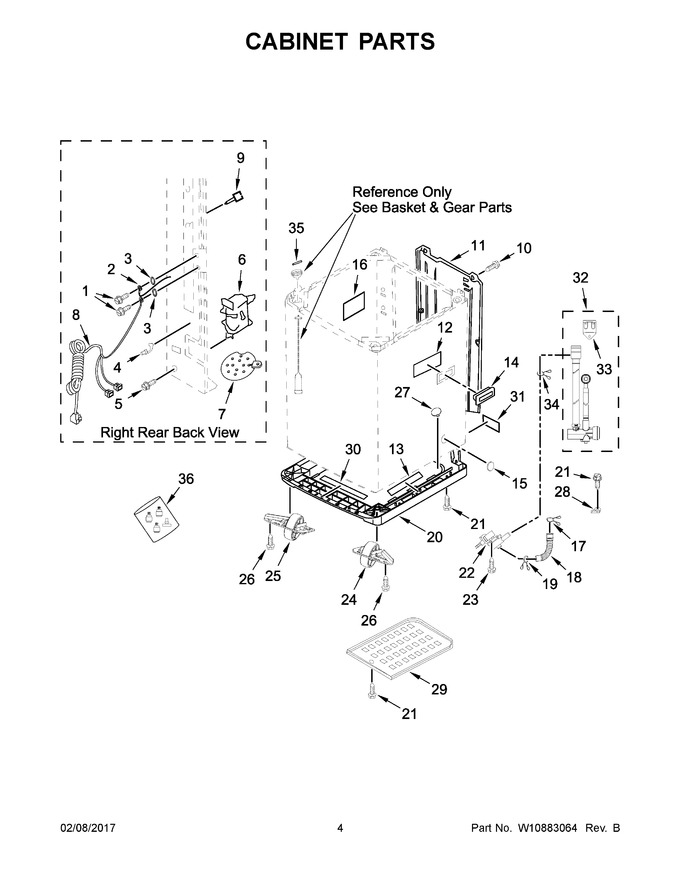

03 - Cabinet Parts
04 - Basket And Gear Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10869822 | Screw |
|
- | |||||
| 2 | W10869829 | Wire, Ground |
|
- | |||||
| 3 | 4159493 | Washer, Lock (Replaces: W10881983) |
|
$ 21.02 | |||||
| 4 | W10883615 | Strain Relief |
|
- | |||||
| 5 | W10882000 | Screw |
|
- | |||||
| 6 | W10882004 | Capacitor |
|
- | |||||
| 7 | W10882108 | Shield, Capacitor |
|
- | |||||
| 8 | W10882052 | Power Cord |
|
- | |||||
| 9 | W10883617 | Retainer, Harness |
|
- | |||||
| 10 | W10869512 | Screw |
|
- | |||||
| 11 | W10882056 | Panel, Rear |
|
- | |||||
| 12 | W10882411 | Foil, Aluminum (handle) (Replaces: W10882403) |
|
- | |||||
| 13 | W10882411 | Foil, Aluminum (left & Right Base) (Replaces: W10882402) |
|
- | |||||
| 14 | W10882059 | Handle |
|
- | |||||
| 15 | W10883709 | Plug, Cabinet |
|
$ 38.90 | |||||
| 16 | W10883704 | Sound Absorber (cabinet) |
|
- | |||||
| 17 | W10883714 | Clamp, Hose |
|
$ 20.71 | |||||
| 18 | W10882096 | Hose (tub To Pump) |
|
Immediately | $ 50.80 | ||||
| 19 | W10883717 | Clamp, Hose |
|
- | |||||
| 20 | W10882101 | Base |
|
- | |||||
| 21 | W10869499 | Screw |
|
- | |||||
| 22 | W10906604 | Pump, Drain (Replaces: W10882103) |
|
Immediately | $ 288.97 | ||||
| 23 | W10883733 | Screw |
|
- | |||||
| 24 | W10882106 | Wheel Caster (right) |
|
- | |||||
| 25 | W10882107 | Wheel Caster (left) |
|
- | |||||
| 26 | W10869507 | Screw |
|
- | |||||
| 27 | W10883747 | Cup, Overflow Hopper |
|
- | |||||
| 28 | W10883737 | Clamp, Wire |
|
- | |||||
| 29 | W10883740 | Sound Absorber (base) |
|
- | |||||
| 30 | W10882411 | Foil, Aluminum (front Base) (Replaces: W10882401) |
|
- | |||||
| 31 | W10883743 | Absorber, Impact |
|
- | |||||
| 32 | W10849778 | Hose Coupler Assembly (Replaces: W10849761) |
|
$ 271.76 | |||||
| 33 | W10883751 | Bracket, Drain Hose |
|
- | |||||
| 34 | W10883711 | Clamp, Hose |
|
$ 21.01 | |||||
| 35 | W10882238 | Pin, Suspension Retainer (Replaces: W10882237) |
|
- | |||||
| 36 | W10882121 | Feet, Leveling (set Of 4) |
|
- |
