SELECT A DIAGRAM

01 - Cover Sheet

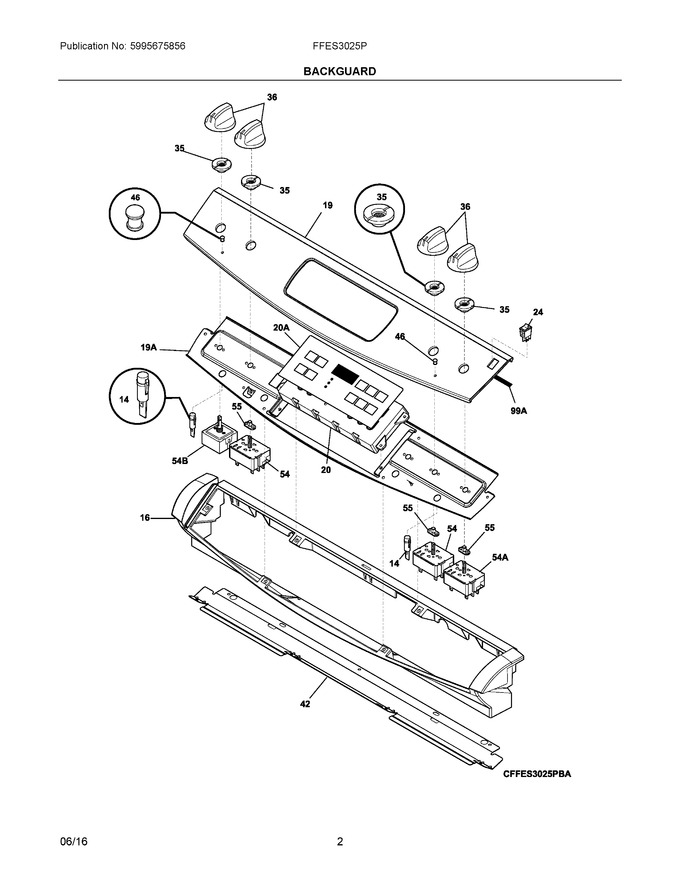

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	318044831		Light, Indicator, Natural, (4)				$ 16.69
16	318299100		Console, Assy., White				$ 418.11
19	139092409		Control Panel Assembly, White				$ 254.12
20	316557146		Clock/timer, Electronic, Es300				$ 367.29
24	5304527842		Switch, Rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
35	318183106		Support, Glass, White, (4)				$ 10.61
36	316543809		Knob, Control, White				$ 44.14
42	318574701		Support, Control Panel, Black				$ 62.69
46	318228301		Lens, Indicator Light				$ 11.29
54	318293830		Switch, Surface Element, Small, (2)			Immediately	$ 94.36
55	318402901		Bushing, Switch				$ 17.72
19A	9910999SI		Panel, Control Mtg.   (Replaces: 318224401)		Appelez-nous	-
20A	316419137		Overlay, Clock, White, Es300			Immediately	$ 31.34
54A	318293831		Switch, Surface Element, Large			Immediately	$ 92.69
54B	318191023		Switch, Infinite, Dual			Immediately	$ 70.64
99A	318223900		Gasket, Dark Grey			Immediately	$ 82.80
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5304504040		Harness, Wiring, Backsplash		Appelez-nous	-
NI	807632802		Harness, Wiring, Oven Control		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIBA	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12

    View Diagram in Separate Window       Print Part List
