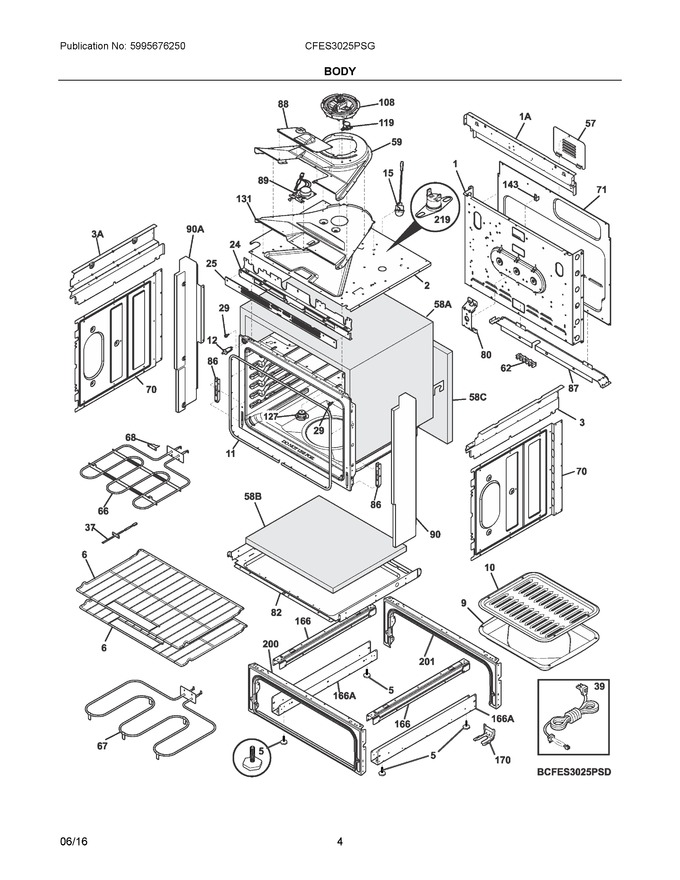

03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139017306		Panel, Main Back		Appelez-nous	-
2	139028100		Shield, Insulation, Top		Appelez-nous	-
3	318225230		Panel, Bodyside, Upper Rh		Appelez-nous	-
5	318175510		Screw, Leveling   (Replaces: 318175503)			Immediately	$ 24.26
6	139011800		Rack, Oven, W/handle				$ 128.00
9	316081900		Pan, Broiler Optional Accessory				$ 65.89
10	316082000		Insert, Broiler Pan Optional Accessory				$ 68.85
11	807545502		Seal, Oven Door, Gray				$ 140.34
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
24	139074901		Frame, Vent Trim, Black		Appelez-nous	-
25	139075001		Cover, Vent Trim, Black				$ 60.52
29	316517600		Bumper, Front, Main				$ 12.05
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 48.13
39	318113111		Cord, Electric				$ 95.55
57	316283600		Cover, Access				$ 12.50
59	139027600		Duct, Cooling Fan, Upper				$ 85.76
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	5304521498		Element, Broil, 6 Pass, 3400w   (Replaces: 139008900)			Immediately	$ 87.21
67	139027501		Element, Bake, 6 Pass, 2750w				$ 178.61
70	139000601		Shield, Insulation, Sides, (2)   (Replaces: 139000600)				$ 72.05
71	139014000		Shield, Rear Wall, Lower		Appelez-nous	-
80	139021101		Bracket, Support, Chassis/fan				$ 14.89
82	139008200		Shield, Insulation, Lower		Appelez-nous	-
86	318561100		Receptacle, Hinge, (2)				$ 21.23
87	318260625		Bracket, Cable Mtg.		Appelez-nous	-
88	5304506964		Cover, Latch Motor   (Replaces: 139027900)				$ 24.10
89	5304528836		Motor, Latch Assembly   (Replaces: 139078301)			Immediately	$ 76.34
90	5304511889		Panel, Filler, Black, Rh   (Replaces: 318296904)				$ 74.42
108	318575612		Motor Assembly, Cooling Fan			Immediately	$ 196.61
119	807144901		Thermostat, Safety, 110c Deg				$ 58.39
127	5304538693		Tube Assembly, Vent, W/catalyst   (Replaces: 139042600)			Immediately	$ 10.03
131	139027700		Duct, Cooling Fan, Lower				$ 73.00
143	318172904		Support, Wire		Appelez-nous	-
166	318298410		Bracket, Base Support, (2)				$ 75.83
170	5304486410		Kit, Anti Tip, W/brkt & Instru				$ 158.50
200	318298232		Frame, Drawer, Black, Front				$ 95.13
201	318298233		Frame, Drawer, Black, Rear				$ 45.36
219	318005229		Switch, Thermal Cutout			Immediately	$ 50.04
166A	5304511884		Bracket, Base Support, Lower, (2)   (Replaces: 318298405)				$ 65.98
1A	139004600		Panel, Main Back, Upper				$ 67.62
3A	318225231		Panel, Bodyside, Upper Lh		Appelez-nous	-
58A	139001700		Insulation, Oven Wrapper, Top & Sides		Appelez-nous	-
58B	139020303		Insulation, Oven Bottom		Appelez-nous	-
58C	139020202		Insulation, Oven Back				$ 44.46
90A	5304511890		Panel, Filler, Black, Lh   (Replaces: 318296905)				$ 81.14
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5304503336		Harness, Wiring, Main				$ 194.30
NI	318235301		Connector Assy., W/3 Lugs, & Instructions   (Replaces: 318235300)				$ 29.06
NI	139021000		Plate, Counter Weight		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	316581300		Retainer, Wire				$ 4.26
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
NIA	318531701		Spacer				$ 12.05
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	318579001		Bracket, Wire				$ 11.08
NIA	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 12.89
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIC	318264200		Plate, Grounding Strap				$ 23.51
NID	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
