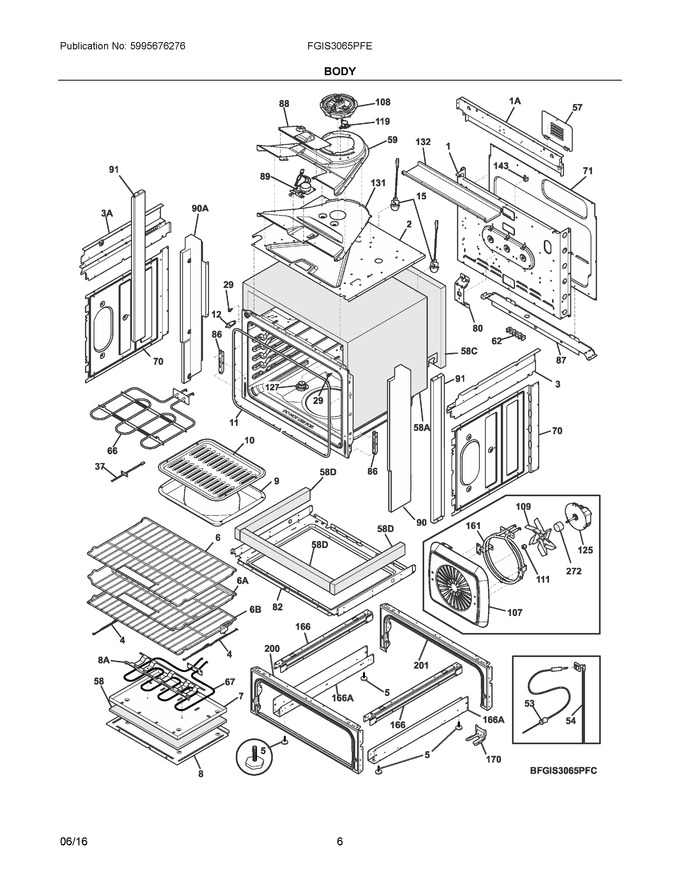

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 139017306 | Panel, Main Back |
|
- | |||||
| 2 | 139028100 | Shield, Insulation, Top |
|
- | |||||
| 3 | 139087301 | Panel, Side, Upper Rh |
|
- | |||||
| 4 | 318927600 | Support, Auto Rack, (2) |
|
$ 23.25 | |||||
| 5 | 318175510 | Screw, Leveling (Replaces: 318175503) |
|
Immediately | $ 24.26 | ||||
| 6 | 139011600 | Rack, Oven, W/handle |
|
$ 124.74 | |||||
| 7 | 318297303 | Box, Bake Element |
|
$ 125.84 | |||||
| 8 | 318359500 | Panel, Service |
|
$ 140.09 | |||||
| 9 | 318138801 | Pan, Broiler Optional Accessory |
|
- | |||||
| 10 | 318126401 | Insert, Broiler Pan Optional Accessory |
|
- | |||||
| 11 | 807545502 | Seal, Oven Door, Gray |
|
$ 140.34 | |||||
| 12 | 808136601 | Switch, Light, Door (Replaces: 318394802) |
|
Immediately | $ 44.04 | ||||
| 15 | 5304528790 | Lamp Assembly, Round, Halogen, W/lens, W/bulb (Replaces: 139009000) |
|
Immediately | $ 20.56 | ||||
| 29 | 316517600 | Bumper, Front, Main |
|
$ 12.05 | |||||
| 37 | 5304504897 | Sensor, Oven Temp Probe |
|
Immediately | $ 48.13 | ||||
| 53 | 5304504202 | Probe, Meat Temp, Red |
|
Immediately | $ 106.19 | ||||
| 54 | 5304517721 | Receptacle Assy, Meat Probe (Replaces: 139017205) |
|
$ 72.30 | |||||
| 57 | 316283600 | Cover, Access |
|
$ 12.50 | |||||
| 58 | 318294912 | Insulation, Bake Element |
|
$ 97.17 | |||||
| 59 | 139027600 | Duct, Cooling Fan, Upper |
|
$ 85.76 | |||||
| 62 | 5303935061 | Terminal Block Kit |
|
- | |||||
| 66 | 5304521498 | Element, Broil, 6 Pass, 3400w (Replaces: 139008900) |
|
Immediately | $ 87.21 | ||||
| 67 | 5304521880 | Element, Bake, 2500w, 8 Pass (Replaces: 139026700) |
|
Immediately | $ 114.97 | ||||
| 70 | 139000601 | Shield, Insulation, Sides, (2) (Replaces: 139000600) |
|
$ 72.05 | |||||
| 71 | 139014000 | Shield, Rear Wall, Lower |
|
- | |||||
| 80 | 139021101 | Bracket, Support, Chassis/fan |
|
$ 14.89 | |||||
| 82 | 139008201 | Shield, Insulation, Lower |
|
- | |||||
| 86 | 318561100 | Receptacle, Hinge, (2) |
|
$ 21.23 | |||||
| 87 | 139020102 | Bracket, Cable Mtg. |
|
- | |||||
| 88 | 5304506964 | Cover, Latch Motor (Replaces: 139027900) |
|
$ 24.10 | |||||
| 89 | 5304528836 | Motor, Latch Assembly (Replaces: 139078301) |
|
Immediately | $ 76.34 | ||||
| 90 | 5304511889 | Panel, Filler, Black, Rh (Replaces: 318296904) |
|
$ 74.42 | |||||
| 91 | 5304500329 | Bracket, Side Cavity, Short, (2) |
|
- | |||||
| 107 | 139013903 | Cover, Convection Fan |
|
$ 46.86 | |||||
| 108 | 318575612 | Motor Assembly, Cooling Fan |
|
Immediately | $ 196.61 | ||||
| 109 | 318398302 | Blade, Fan, Convection (Replaces: 139009100) |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut, Fan Retainer |
|
Immediately | $ 19.13 | ||||
| 119 | 807144901 | Thermostat, Safety, 110c Deg |
|
$ 58.39 | |||||
| 125 | 139008500 | Motor, Convection Fan |
|
Immediately | $ 216.23 | ||||
| 127 | 5304538693 | Tube Assembly, Vent, W/catalyst (Replaces: 139042600) |
|
Immediately | $ 10.03 | ||||
| 131 | 139027700 | Duct, Cooling Fan, Lower |
|
$ 73.00 | |||||
| 132 | 318404704 | Duct, Air |
|
$ 81.17 | |||||
| 143 | 318172904 | Support, Wire |
|
- | |||||
| 161 | 8581390065036 | Element, Convection, 2500w (Replaces: 139006500) |
|
$ 47.63 | |||||
| 166 | 318298410 | Bracket, Base Support, (2) |
|
$ 75.83 | |||||
| 170 | 5304486410 | Kit, Anti Tip, W/brkt & Instru |
|
$ 158.50 | |||||
| 200 | 318298232 | Frame, Drawer, Black, Front |
|
$ 95.13 | |||||
| 201 | 318298233 | Frame, Drawer, Black, Rear |
|
$ 45.36 | |||||
| 272 | 139021700 | Tube, Convection Fan |
|
$ 17.72 | |||||
| 166A | 5304511884 | Bracket, Base Support, Lower, (2) (Replaces: 318298405) |
|
$ 65.98 | |||||
| 1A | 139004600 | Panel, Main Back, Upper |
|
$ 67.62 | |||||
| 3A | 139087300 | Panel, Side, Upper Lh |
|
- | |||||
| 58A | 139001700 | Insulation, Oven Wrapper, Top & Sides |
|
- | |||||
| 58C | 139020202 | Insulation, Oven Back |
|
$ 44.46 | |||||
| 58D | 139020301 | Insulation, Sides, (2) |
|
- | |||||
| 6A | 139012400 | Rack, Oven, Offset, W/handle |
|
$ 181.34 | |||||
| 6B | 139013101 | Rack, Auto |
|
$ 159.26 | |||||
| 8A | 318313601 | Bracket, Bake Element |
|
$ 71.45 | |||||
| 90A | 5304511890 | Panel, Filler, Black, Lh (Replaces: 318296905) |
|
$ 81.14 | |||||
| NI | 5303289910 | Screw, Truss Sqdr, 8a X 1 |
|
$ 5.67 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 318531701 | Spacer |
|
$ 12.05 | |||||
| NI | 808674001 | Harness, Wiring, Main |
|
- | |||||
| NI | 5304517813 | Harness, Wiring, Condensator, W/3 Capacitors (Replaces: 318231879) |
|
$ 35.44 | |||||
| NI | 318235301 | Connector Assy., W/3 Lugs, & Instructions (Replaces: 318235300) |
|
$ 29.06 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 | |||||
| NIA | 807597603 | Screw, Self Tapping, 8-18 X 11/32, (4) |
|
$ 9.22 | |||||
| NIA | 318946500 | Bulb, Halogen, G9, 25w, 120v |
|
Immediately | $ 60.44 | ||||
| NIA | 318579001 | Bracket, Wire |
|
$ 11.08 | |||||
| NIA | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NIA | 316116000 | Screw, Concrete, 1.75", Anti-tip Brkt |
|
$ 12.89 | |||||
| NIB | 316205500 | Nut, Hex Flange, 3/8 10-32 |
|
$ 11.34 | |||||
| NIC | 318264200 | Plate, Grounding Strap |
|
$ 23.51 |
