View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts

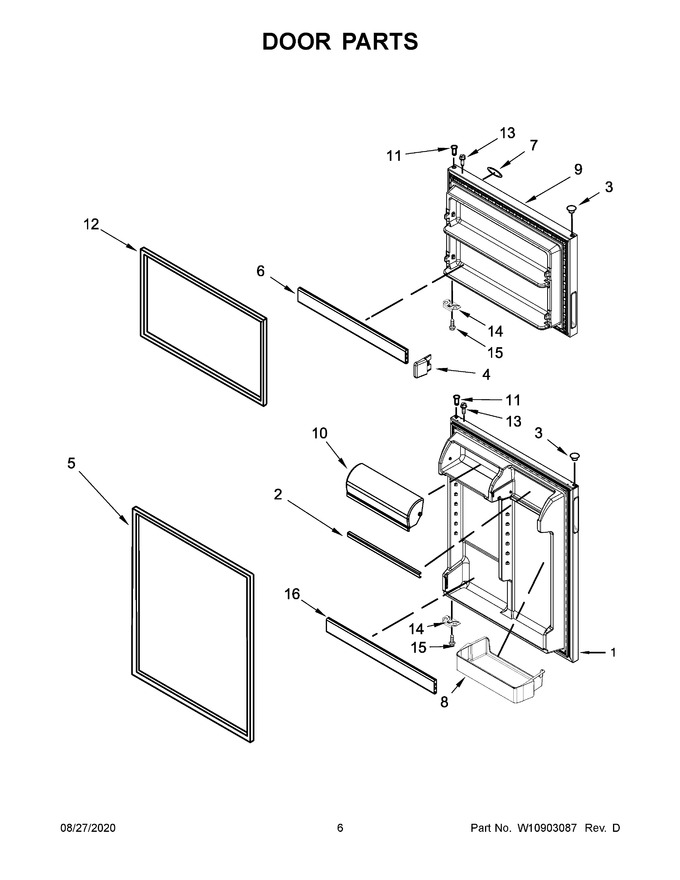

04 - Door Parts
05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10668765 | Refrigerator Door (includes Door Gasket) (white) (Replaces: W10668765) |
|
$ 753.09 | |||||
| 2 | W11678258 | Trim, Door (Replaces: W10720455) |
|
$ 75.55 | |||||
| 3 | WP2212648 | Plug, Hinge Sleeve (white) (Replaces: 2212648) |
|
$ 7.02 | |||||
| 4 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.36 | ||||
| 5 | W10860480 | Gasket, Door (white) (Replaces: W10692652) |
|
$ 265.49 | |||||
| 6 | W11596065 | Trim, Door (Replaces: W10720452) |
|
$ 84.22 | |||||
| 7 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 36.31 | ||||
| 8 | W10803530 | Bin, Door (Replaces: W10582649) |
|
$ 60.21 | |||||
| 9 | LW10668769 | Freezer Door (includes Door Gasket) (white) (Replaces: W10668769) |
|
$ 701.52 | |||||
| 10 | W11617783 | Door, Compartment (Replaces: W10385897) |
|
$ 65.39 | |||||
| 11 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.47 | |||||
| 12 | W10741118 | Gasket, Door (white) (Replaces: W10692653) |
|
$ 284.60 | |||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.15 | |||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 15 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.07 | ||||
| 16 | W11606660 | Trim, Door (Replaces: W11230195) |
|
Immediately | $ 27.95 | ||||
| 12A | 2177310 | Gasket, Door (black) (Replaces: 2214969) |
|
$ 287.41 | |||||
| 12B | W10249196 | Gasket, Door (grey) (Replaces: W10171479) |
|
Immediately | $ 239.23 | ||||
| 1A | LW10668767 | Refrigerator Door (includes Door Gasket) (black) (Replaces: W10668767) |
|
$ 655.86 | |||||
| 1B | LW10642552 | Refrigerator Door (includes Door Gasket) (monochromatic Stainless) (Replaces: W10642552) |
|
$ 729.39 | |||||
| 1C | LW10856269 | Refrigerator Door (includes Door Gasket) (stainless Steel) (Replaces: W10856269) |
|
$ 746.55 | |||||
| 3A | WP2212651 | Plug, Hinge Sleeve (black) (Replaces: 2212651) |
|
$ 20.75 | |||||
| 3B | WP2254517 | Plug, Hinge Sleeve (grey) (Replaces: 2254517) |
|
Immediately | $ 20.86 | ||||
| 5A | 2177311 | Gasket, Door (black) (Replaces: 2202882) |
|
$ 283.67 | |||||
| 5B | W10249195 | Gasket, Door (grey) (Replaces: W10171475) |
|
$ 287.83 | |||||
| 9A | LW10668770 | Freezer Door (includes Door Gasket) (black) (Replaces: W10668770) |
|
$ 657.30 | |||||
| 9B | LW10642758 | Freezer Door (includes Door Gasket) (monochromatic Stainless) (Replaces: W10642758) |
|
$ 642.49 | |||||
| 9C | LW10856271 | Freezer Door (includes Door Gasket) (stainless Steel) (Replaces: W10856271) |
|
$ 718.58 |
