Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12002512 Kit- Antenna Assy Special Order $ 96.28

2 59001885 Clamp- Ceramic Appelez-nous -
2 WP489128 Screw   (Replaces: M0220417) Special Order $ 9.79

3 59001884 Plate- Plenum Front Appelez-nous -
3 WP489128 Screw   (Replaces: M0220417) Special Order $ 9.79

4 12002607 Element Block Mtg Kit W/screws Appelez-nous -
5 A3030301 Gasket (inch) Appelez-nous -
6 12002615 Antenna Motor Kit (with Gear) Appelez-nous -
7 10903002 Washer, Spur Gear Special Order $ 5.44

8 12002580 Kit- Spur Gear Appelez-nous -
9 59001205 Shaft, Ret-gear Appelez-nous -
10 12002581 Kit- Spur Gear Appelez-nous -
11 59001939 Thermal-cutout Appelez-nous -
12 WP489128 Screw   (Replaces: M0220417) Special Order $ 9.79

12 59001938 Shield-elem Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

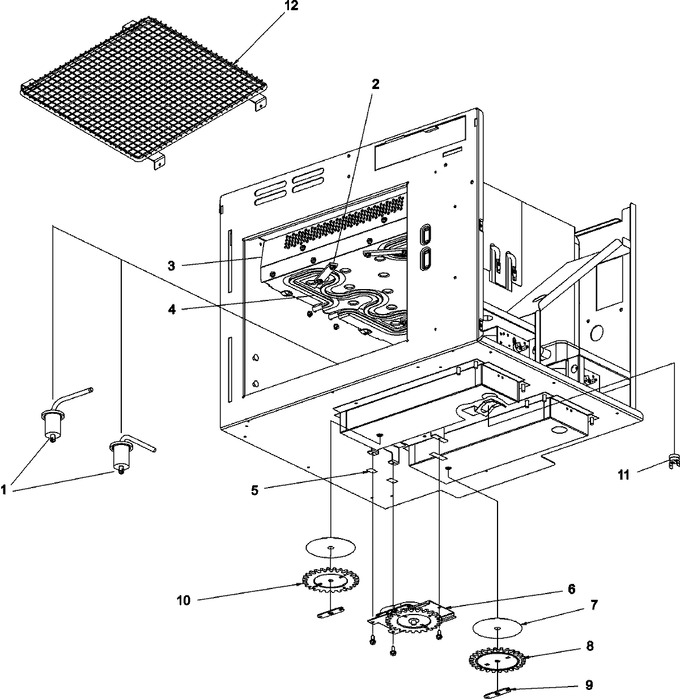

Diagram for AMH20 (BOM: P1330801M)
