SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body

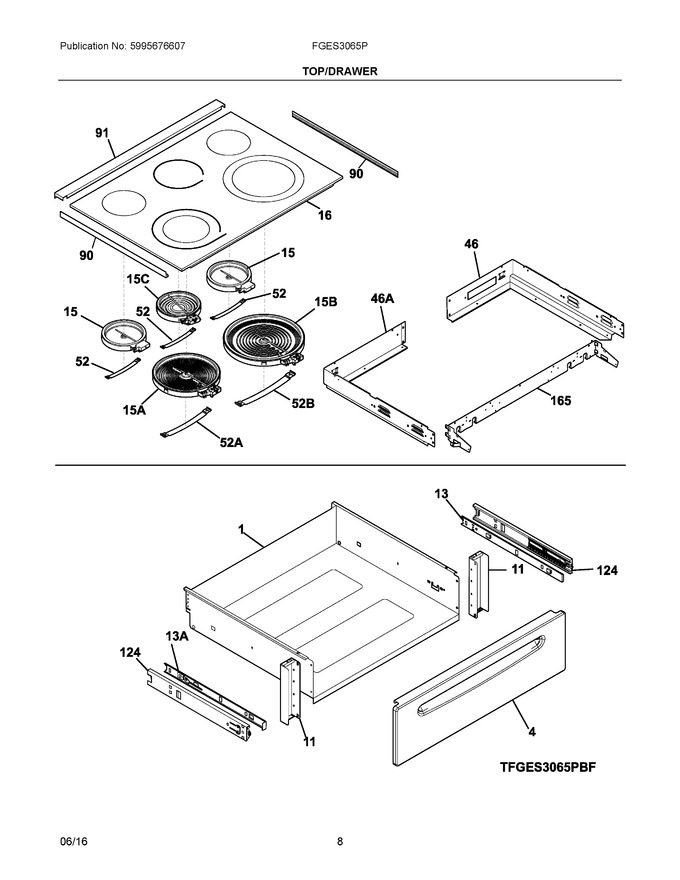

04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318107317		Drawer, Black				$ 144.09
4	318298908		Panel, Drawer, Black, Front				$ 131.93
11	318298600		Bracket, Drawer Support, (2)				$ 62.69
13	318259504		Glide, Warmer, Inner Rh				$ 29.49
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 122.86
16	139033802		Smoothtop Assembly, Glass, Black				$ 298.57
46	318568200		Box, Burner, Rh				$ 23.99
52	318122006		Spring, Element Mtg, Small				$ 66.25
90	318368001		Channel, Glass Protector, (2)				$ 22.98
91	5304530475		Trim, Filler, Black, Rear   (Replaces: 318304303)			Immediately	$ 78.11
124	318330600		Glide, Drawer, Outer/rh & Lh, (2)				$ 77.97
165	318913300		Deflector, Box, Front				$ 48.67
13A	318259505		Glide, Warmer, Inner Lh				$ 33.03
15A	5304533520		Element, Dual, 9"/6", Surface, 3000w, Quick Boil   (Replaces: 316282000)			Immediately	$ 90.14
15B	316282101		Element, Dual, 12"/9", Surface, 1200/2000w, Radiant   (Replaces: 316282102)			Immediately	$ 283.03
15C	140273621015		Element, Surface, Warmer, 100 W   (Replaces: 316289800)			Immediately	$ 35.77
46A	318568201		Box, Burner, Lh				$ 28.93
52A	318122010		Spring, Element Mtg, 3000w				$ 62.51
52B	318122011		Spring, Element Mtg, 1200w/1800w				$ 62.14
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	807723701		Harness, Wiring, Surface Element		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03

    View Diagram in Separate Window       Print Part List
