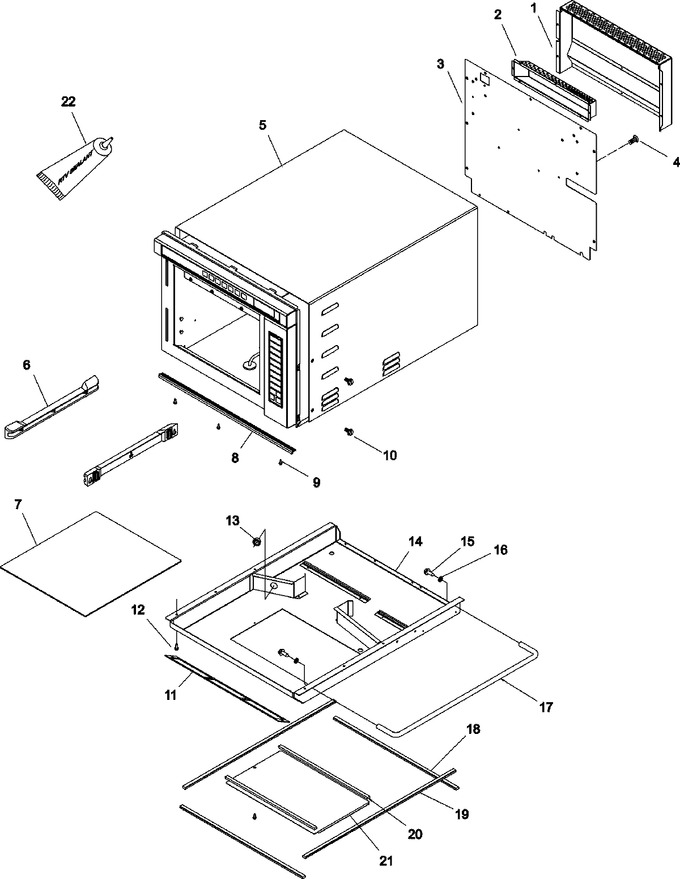

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	59001960		Dilution Flue Assy		Appelez-nous	-
1	WP489128		Screw   (Replaces: M0220417)				$ 9.79
2	59001959		Flue- Inner Dilution		Appelez-nous	-
2	WP489128		Screw   (Replaces: M0220417)				$ 9.79
3	59001958		Rear Access Panel		Appelez-nous	-
4	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
5	WP489128		Screw   (Replaces: M0220417)				$ 9.79
5	59001961		Wrapper Oc		Appelez-nous	-
6	59001879		Rack Guide Assy		Appelez-nous	-
7	12002510		Kit- Ceramic Plate & Sealer		Appelez-nous	-
8	59001878		Trim- Oc		Appelez-nous	-
9	M0249632		Screw, T F		Appelez-nous	-
10	M0249619		Screw, T F		Appelez-nous	-
11	M0274032		Washer Non-metal		Appelez-nous	-
11	10853102		Grille, Air Inlet		Appelez-nous	-
11	59001724		Screw-decorative		Appelez-nous	-
12	WP489128		Screw   (Replaces: M0220417)				$ 9.79
13	A3293503		Snap Bushing		Appelez-nous	-
14	59001962		Basepan Assy		Appelez-nous	-
17	59001963		Bar-spacer		Appelez-nous	-
17	M0282019		Nut-keps		Appelez-nous	-
18	59001882		Basepan Gasket- Cut		Appelez-nous	-
19	59001883		Basepan Gasket- Cut		Appelez-nous	-
20	A3030301		Gasket (inch)		Appelez-nous	-
21	10782402		Bottom Access Panel		Appelez-nous	-
21	M0213802		Screw		Appelez-nous	-
22	59001950		Sealer,rtv 2.8 Oz-red-hi-temp		Appelez-nous	-
