SELECT A DIAGRAM

01 - Cover Sheet

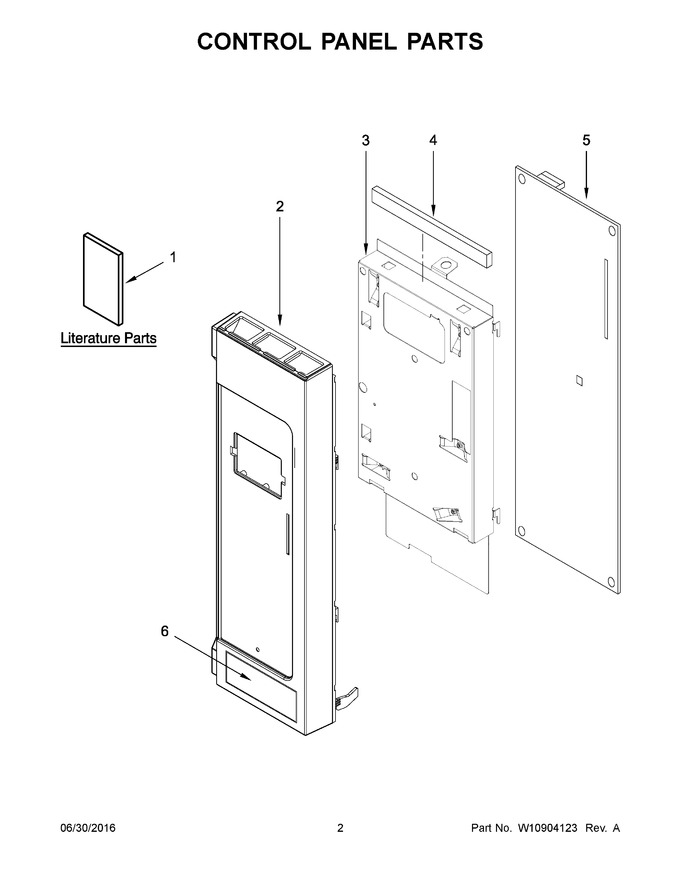

02 - Control Panel Parts


03 - Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10823831		Installation Instructions		Appelez-nous	-
2	W10902919		Control Panel Assembly (includes Lens And Membrane Switch) (white)		Appelez-nous	-
3	W11676791		Backer, Control   (Replaces: W10833365)				$ 48.91
4	W10833531		Seal, Control				$ 21.01
5	W11544456		Microcomputer   (Replaces: W10849846)				$ 120.39
6	W10850630		Assembly, Push Button (white)				$ 125.45
1A	W10835572		Use And Care Guide		Appelez-nous	-
1B	W10835581		Cook Guide Label		Appelez-nous	-
1C	W10867021		Tech Sheet		Appelez-nous	-
2A	W10902918		Control Panel Assembly (includes Lens And Membrane Switch) (black)		Appelez-nous	-
2B	W10918926		Control Panel Assembly (includes Lens And Membrane Switch) (stainless)   (Replaces: W10846300)		Appelez-nous	-
6A	W10850629		Assembly, Push Button (black)				$ 124.61

    View Diagram in Separate Window       Print Part List
