SELECT A DIAGRAM

01 - Cover Sheet

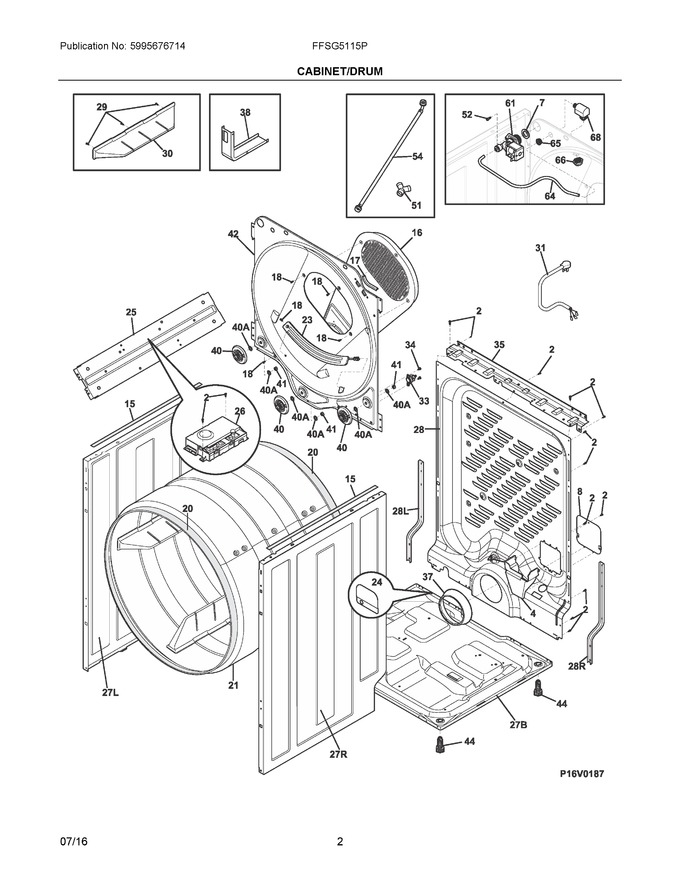

02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
4	134792200		Bracket, Mounting, Terminal Block				$ 26.09
7	5303161296		Washer, Inlet Hose			Immediately	$ 2,372.96
8	137578600		Cover, Access, Terminal Block				$ 12.65
15	137031800		Cushion, Vibration, Top Panel			Immediately	$ 8.51
16	5304509715		Duct, Heat, Rear   (Replaces: 137199820)			Immediately	$ 124.34
17	134792900		Protector, Edge, Right Top Front, 85.0+/-1.5				$ 13.46
18	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
20	5304499489		Seal, Felt, Purple Stitches, Drum			Immediately	$ 56.69
21	137623110		Drum, Dryer, Assembly 36				$ 342.41
23	134786100		Sensor, Moisture, Assembly				$ 84.27
24	137537100		Cover, Back Sheet, Cutout		Appelez-nous	-
25	134912100		Bracket, Mounting, Main Control Bx		Appelez-nous	-
26	809160803		Control Asmy, Main W/housing				$ 283.50
28	5304506748		Panel, Backsheet, Rear		Appelez-nous	-
29	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
30	137623210		Vane, Drum, Ncs 6502b		Appelez-nous	-
31	5304505407		Power Cord, Electric Svce   (Replaces: 134501000)				$ 88.20
33	137515200		Limiter, Flush Mount, Thermal				$ 60.25
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
35	134959000		Bracket, Top Panel Mtg., Rear		Appelez-nous	-
37	137553500		Cover, Exhaust Tube				$ 47.66
38	137560600		Guard, Roller		Appelez-nous	-
40	5304523155		Roller, Wheel, Complete Asmy   (Replaces: 134715900)			Immediately	$ 77.99
41	134716800		Nut, 3/8-16				$ 2.98
42	137556618		Bulkhead, Panel, Rear		Appelez-nous	-
44	134158000		Leveling Leg, Screw		Appelez-nous	-
51	5304500709		Fitting, "y", Hose Adapter   (Replaces: 137016711)			Immediately	$ 12.56
52	137573900		Screw, Comb Pan Hd, 1/4-14x.375		Appelez-nous	-
54	5304503984		Hose, Subassembly, 48", Inlet   (Replaces: 137471700)				$ 46.07
61	137544800		Valve, Mist Lowprofile			Immediately	$ 78.44
64	5304529773		Tube, Water Valve To, Misting Nozzle   (Replaces: 137402400)				$ 77.30
65	137017200		Grommet, Misting Tube				$ 3.55
66	5304529773		Nut, Nozzle   (Replaces: 137017300)				$ 77.30
68	5304529773		Adapter, Water Nozzle, Complete   (Replaces: 137030100)				$ 77.30
27B	134690203		Base, Dryer				$ 273.58
27L	134690310		Panel, Left Side, White				$ 221.03
27R	134690410		Panel, Right Side, White				$ 208.64
28L	137029900		Bracket, Reinforcement, Left, Backsheet		Appelez-nous	-
28R	137066800		Bracket, Reinforcement, Right, Backsheet		Appelez-nous	-
40A	134716700		Washer, Flat				$ 2.12
NI	131303300		Screw, Pan Head, 10-16ab X 0.500, Locking		Appelez-nous	-
NI	137240400		Brace, Side Panel, Left Or Right		Appelez-nous	-
NIA	134716200		Retainer, Roller Wheel, Assembly				$ 3.12
NIA	134790900		Strain Relief, 120, Pwr Cord		Appelez-nous	-
NIA	131205500		Screw, 1/4-14 X 0.625				$ 13.46
NIA	137577900		Bracket, Moist Sensor, W/plugs		Appelez-nous	-
NIA	137360810		Protector, Edge, Side Brace		Appelez-nous	-
NIA	5304506746		Shield, Mist Valve				$ 43.38
NIA	137611500		Insulation, Access Cover, Silicone Sheet		Appelez-nous	-
NIA	5308027429		Adhesive, High Temp			Immediately	$ 60.25
NIB	134926600		Damper, Sound				$ 14.18
NIB	134930800		Wiring Harness, Moisture Sensor			Immediately	$ 48.44
