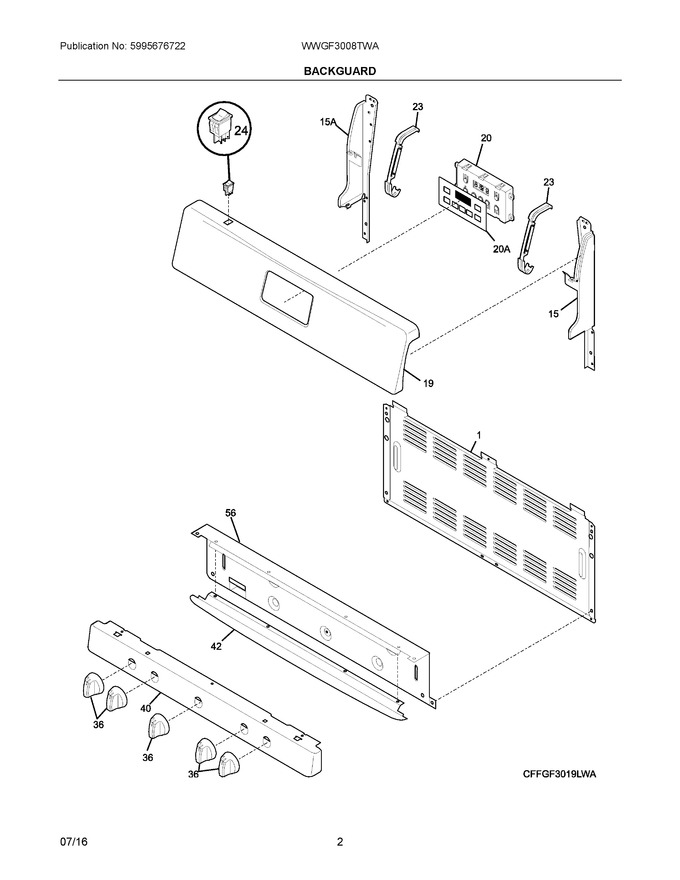

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281800)				$ 57.64
15	316411403		Support, Backguard, White, Rh				$ 84.10
19	807152207		Panel, Backguard, White		Appelez-nous	-
20	5304518661		Clock/timer, Electronic, Es100   (Replaces: 316455410)			Immediately	$ 148.07
23	316441600		Bracket-clock Mtg, Black				$ 20.48
24	5304527842		Switch, Rocker, White, Oven Light   (Replaces: 316448701)			Immediately	$ 16.13
36	316543906		Knob, Top Valve, White, (4)				$ 25.48
40	316561933		Panel-manifold, White		Appelez-nous	-
42	316416205		Trim, Extrusion, Gray   (Replaces: 316416201)				$ 51.57
56	316230705		Shield, Backguard, Inner		Appelez-nous	-
15A	316411402		Support, Backguard, White, Lh				$ 94.55
20A	316220728		Overlay, Clock, White   (Replaces: 316220722)			Immediately	$ 39.44
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
