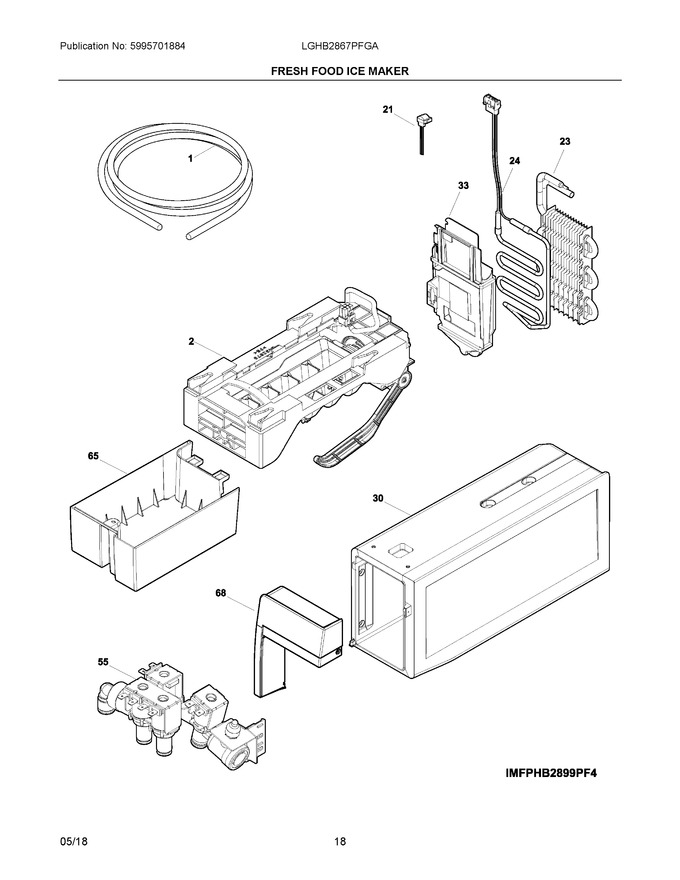

09 - Fresh Food Ice Maker


10 - Freezer Ice Maker


11 - Wiring Diagram


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976436		Tube-water, 5/16 - 42", Yellow, Sd   (Replaces: 218976434)			Immediately	$ 8.51
2	243297613		Ice Maker, Complete, 115 V   (Replaces: 243297606)			Immediately	$ 117.66
21	5303918810		Thermostat, Defrost Safety, Ice Maker   (Replaces: 808113301)			Immediately	$ 43.99
23	242094603		Evaporator, Ice Maker				$ 138.07
24	242094802		Heater-defrost			Immediately	$ 113.92
30	242093502		Housing Assembly, Ice Maker, Complete		Appelez-nous	-
33	242094401		Housing-evaporator				$ 6.39
55	242253002		Valve-water, Quad Solenoid			Immediately	$ 244.75
64	5304453921		Clamp-cable		Appelez-nous	-
65	808456301		Cover, Wiring				$ 75.41
68	242095002		Cover, -front, Bucket Trim				$ 94.82
NI	241806601		Connector-water, Straight, 5/16 To 5/16   (Replaces: 242103001)			Immediately	$ 70.56
NIA	242200102		Clip, Tubing, 90 Deg Elbow   (Replaces: 242200101)				$ 10.63
NIA	215688131		Tape, Aluminum, 2" Wd X 3.50" L		Appelez-nous	-
NIA	218709101		Screw, Hex Head, 10-32 X 0.500				$ 6.38
NIA	5303918784		Gasket, .4x .75x 16.00   (Replaces: 242124801)			Immediately	$ 122.75
NIA	242096001		Insulation, I/container Frt				$ 19.72
NIB	5303918784		Gasket-evap Housing   (Replaces: 242095401)			Immediately	$ 122.75
NIB	5303918784		Gasket, .9x .75x 10.75   (Replaces: 242124802)			Immediately	$ 122.75
NIB	240363602		Screw-shoulder				$ 13.65
NIC	242095402		Gasket-evap Housing, .250x.250x3.300		Appelez-nous	-
NIC	5303918784		Gasket, Housing Funnel, 2.69x 3.05x .25, Top, W/hole   (Replaces: 242146001)			Immediately	$ 122.75
NID	242095403		Gasket-evap Housing, .250x.250x7.750		Appelez-nous	-
NIE	5303918784		Gasket-evap Housing, .250x.250x5.250   (Replaces: 242095404)			Immediately	$ 122.75
NIF	242095405		Gasket-evap Housing, .250x.250x6.600		Appelez-nous	-
NIG	242095408		Gasket-evap Housing, .250x1.00x6.600		Appelez-nous	-
NIH	242095425		Gasket-evap Housing   (Replaces: 242095409)				$ 10.31
