SELECT A DIAGRAM

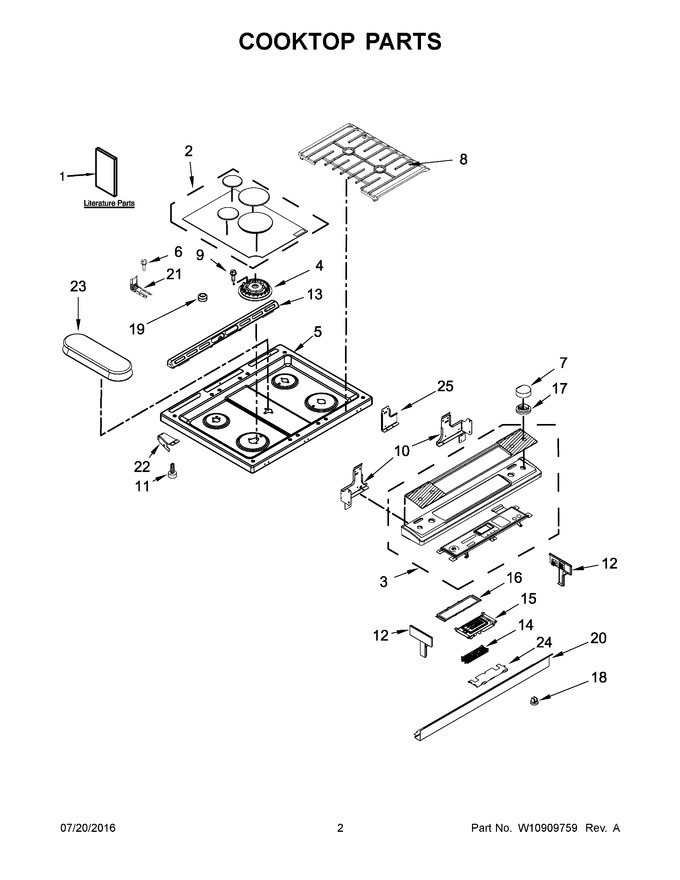

01 - Cover Sheet


02 - Cooktop Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10665256		Instructions, Installation		Appelez-nous	-
2	W11244067		Kit, Burner Cap (black)   (Replaces: W10432498)			Immediately	$ 191.32
3	W10911396		Console (black)   (Replaces: W10901071)		Appelez-nous	-
4	W11238353		Spreader, Flame (right Front)   (Replaces: W10556378)				$ 108.32
5	W10814033		Cooktop (black)   (Replaces: W10474663)		Appelez-nous	-
6	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 26.33
7	W10505765		Knob (black)		Appelez-nous	-
8	W11228127		Kit, Grate (black)   (Replaces: W10432535)				$ 312.79
9	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
10	W10289170		Support, Cooktop (left)				$ 25.76
11	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 15.09
12	W10557750		Endcap (black Left)				$ 122.55
13	W11256338		Trim, Vent (black)   (Replaces: W10577781)				$ 175.55
14	W11297271		Control, Mrc2 Oven   (Replaces: W10453981)				$ 439.80
15	WPW10603095		Assembly, Display   (Replaces: W10603095)			Immediately	$ 267.98
16	W10557780		Bracket , Control				$ 31.44
17	W10490680		Bezel (black)				$ 115.36
18	W11025100		Grommet   (Replaces: W10645947)			Immediately	$ 11.28
19	W11104127		Bumper   (Replaces: W10664705)			Immediately	$ 18.83
20	W10565660		Console, Lower Panel (black)		Appelez-nous	-
21	W11502257		Bracket, Anti-tip   (Replaces: W10606241)			Immediately	$ 20.73
22	W10162253		Brace, Corner (left)				$ 63.54
23	W10556376		Spreader, Flame (fish)				$ 275.22
24	W10558372		Bracket, Control (center)				$ 21.51
25	W10598048		Bracket, Console (center)				$ 22.05
10A	W10289169		Support, Cooktop (right)				$ 25.76
12A	W10557751		Endcap (stainless Left)				$ 144.73
12B	W10557753		Endcap (black Right)		Appelez-nous	-
12C	W10557754		Endcap (stainless Right)				$ 144.73
13A	W10577782		Trim, Vent (stainless)				$ 123.06
17A	W11028784		Bezel (stainless)   (Replaces: W10490679)			Immediately	$ 53.14
1A	W10665265		Use And Care Guide		Appelez-nous	-
1B	W10665227		Sheet, Tech		Appelez-nous	-
1C	W10665235		Wiring Diagram		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1E	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1F	W10400066		Guide, Quick Start (english)		Appelez-nous	-
1G	W10400067		Guide, Quick Start (french)		Appelez-nous	-
20A	W10565662		Console, Lower Panel (stainless)				$ 178.74
22A	W10162252		Brace, Corner (right)				$ 67.37
3A	W10911397		Console (stainless)   (Replaces: W10901070)			Immediately	$ 697.63
4A	W10556377		Spreader, Flame (right Rear)				$ 75.96
4B	W10556379		Spreader, Flame (left Rear)				$ 78.72
4C	W10556380		Spreader, Flame (left Front)				$ 166.24
5A	W10797526		Cooktop (stainless)   (Replaces: W10474665)				$ 501.26
7A	WPW10505764		Knob (stainless)   (Replaces: W10505764)				$ 109.48
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10911847		Harness, Main   (Replaces: W10580232)			Immediately	$ 207.69
NI	W10580228		Harness, Bake/broil				$ 120.60
NI	W11176109		Harness, Display   (Replaces: W10598169)			Immediately	$ 192.83
NI	W10580265		Harness, Bake/warm Drawer			Immediately	$ 75.46
NI	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 76.28
NI	W10580229		Wire, Ground				$ 32.76
NI	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 48.02
NI	W11684889		Insulation, Burner Box   (Replaces: W10716764)				$ 105.84

    View Diagram in Separate Window       Print Part List
