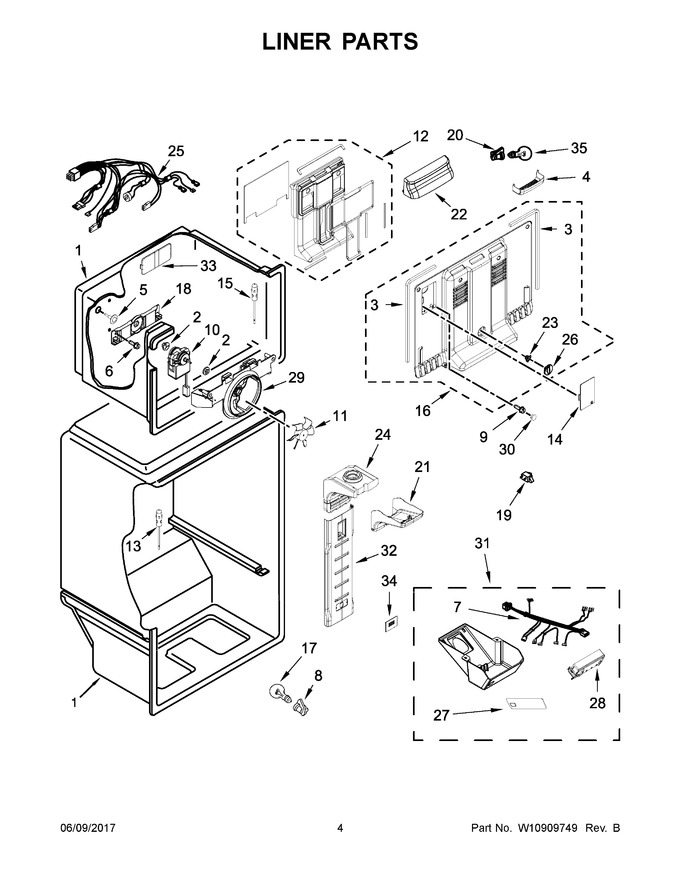

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Serviced) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 39.57 | ||||
| 3 | W10849448 | Gasket, Evaporator Cover (Replaces: W10709194) |
|
Immediately | $ 82.02 | ||||
| 4 | WPW10313918 | Lens, Light (Replaces: W10313918) |
|
Immediately | $ 81.72 | ||||
| 5 | WP941839 | Hole Plug (white) (Replaces: 941839) |
|
$ 6.89 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 6.79 | |||||
| 7 | W11436564 | Wire Assembly, Control Box (Replaces: W10855785) |
|
Immediately | $ 65.24 | ||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 99.14 | ||||
| 9 | W11544659 | Screw (Replaces: 8281232) |
|
$ 12.30 | |||||
| 10 | WP2315539 | Motor, Evaporator Fan (Replaces: 2315539) |
|
Immediately | $ 74.93 | ||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 59.54 | ||||
| 12 | W10919804 | Assembly, Evaporator Plenum (Replaces: W10676682) |
|
Immediately | $ 86.63 | ||||
| 13 | W11438736 | Thermistor, Refrigerator (Replaces: W10556397) |
|
Immediately | $ 75.64 | ||||
| 14 | W10677275 | Cover, Hole |
|
$ 79.23 | |||||
| 15 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 101.55 | ||||
| 16 | W11024683 | Cover, Evaporator (Replaces: W10668482) |
|
$ 210.51 | |||||
| 17 | W11216993 | Lamp, Led (Replaces: W10820003) |
|
Immediately | $ 38.92 | ||||
| 18 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 64.67 | ||||
| 19 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 33.51 | ||||
| 20 | W11661565 | Socket, Light (Replaces: W10440814) |
|
Immediately | $ 30.70 | ||||
| 20 | WPW10392132 | Bi-metal, Defrost (Replaces: W10392132) |
|
Immediately | $ 7.76 | ||||
| 21 | W10637058 | Cover, Air Diffuser |
|
$ 76.24 | |||||
| 22 | WPW10313917 | Housing, Freezer Lighting (Replaces: W10313917) |
|
Immediately | $ 81.96 | ||||
| 23 | W11244470 | Baffle, Air Manual (Replaces: W10570951) |
|
$ 73.32 | |||||
| 24 | W10677734 | Assembly, Air Diffuser |
|
Immediately | $ 111.44 | ||||
| 25 | W11551368 | Assembly, Evaporator Fan Wire (Replaces: W10637660) |
|
$ 81.96 | |||||
| 26 | W11026417 | Knob, Air Control (Replaces: W10570952) |
|
$ 78.73 | |||||
| 27 | W10878152 | Overlay |
|
$ 70.26 | |||||
| 28 | W11436572 | Control, Electronic (Replaces: W10874481) |
|
Immediately | $ 132.82 | ||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 27.83 | ||||
| 30 | W10854527 | Cover, Screw (Replaces: W10487421) |
|
$ 8.47 | |||||
| 31 | W11353815 | Assembly, Control Box (Replaces: W10883378) |
|
Immediately | $ 222.69 | ||||
| 32 | W10705785 | Cover, Air Filter |
|
$ 83.89 | |||||
| 33 | W10336009 | Cup, Screw |
|
$ 66.34 | |||||
| 34 | WPW10330850 | Grille, Air Filter Bottom (Replaces: W10330850) |
|
$ 32.19 | |||||
| 35 | W11518235 | Lamp, Led (Replaces: W10574850) |
|
Immediately | $ 26.36 | ||||
| 36 | W11661565 | Socket, Light (Replaces: W10440814) |
|
Immediately | $ 30.70 |
