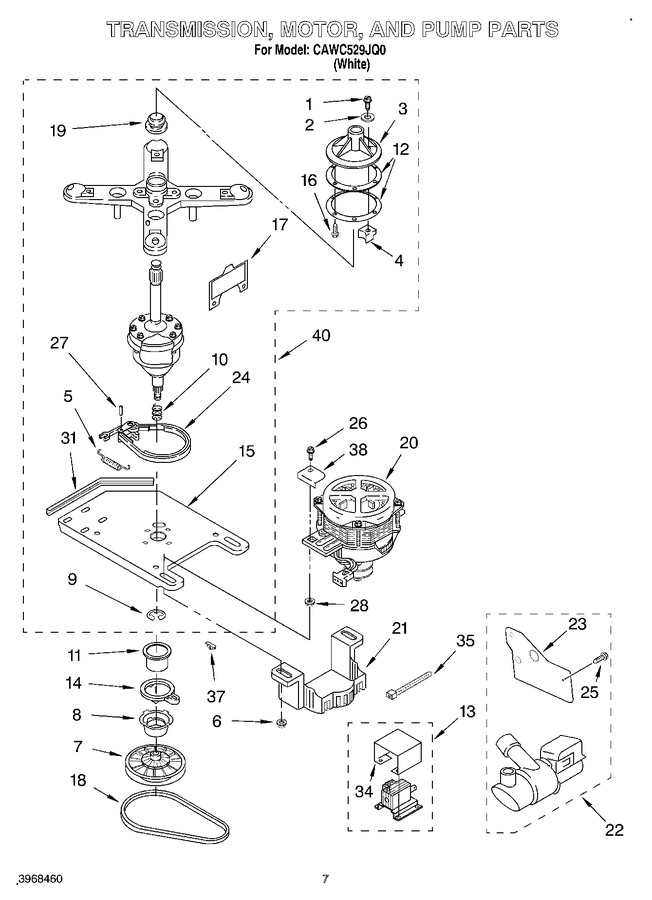

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3428430		Screw		Appelez-nous	-
2	3429750		Washer		Appelez-nous	-
3	3934735		Hub, Drive		Appelez-nous	-
4	3428429		Saddle Block		Appelez-nous	-
5	3428342		Spring, Brake		Appelez-nous	-
6	3934661		Nut, Lock		Appelez-nous	-
7	3428359		Pulley, Splutch				$ 33.87
8	3428378		Cam, Splutch				$ 35.36
9	WP354987		Ring, Snap   (Replaces: 3934678)			Immediately	$ 10.58
10	3934212		Spring, Splutch		Appelez-nous	-
11	3428380		Slider, Splutch		Appelez-nous	-
12	3428179		Gasket, Hub (2)		Appelez-nous	-
13	3966774		Solenoid		Appelez-nous	-
14	3428379		Cam Ring, Splutch				$ 5.51
15	3430205		Plate, Bottom		Appelez-nous	-
16	3934714		Screw (6)				$ 5.27
17	3967287		Shield, Motor Splash		Appelez-nous	-
18	3934700		Drive Belt				$ 39.07
19	WP3968381		Seal   (Replaces: 3968381)				$ 26.59
20	3934201		Motor, Main Drive (includes Item 6)		Appelez-nous	-
21	3429190		Shield, Pulley		Appelez-nous	-
22	3967961		Pump (complete)		Appelez-nous	-
23	3967958		Shield		Appelez-nous	-
24	3428323		Brake Band Assy.				$ 20.90
25	3967955		Screw		Appelez-nous	-
26	3934663		Bolt, Motor Mounting (2)		Appelez-nous	-
27	3934183		Pin, Brake Band		Appelez-nous	-
28	90984		Nut, Hex   (Replaces: 3934662)		Appelez-nous	-
31	3429705		Protector, Edge		Appelez-nous	-
34	3967288		Shield, Top Solenoid		Appelez-nous	-
35	WP2205813		Tie, Wire   (Replaces: 3429563)				$ 6.95
37	3429416		Lock, Solenoid		Appelez-nous	-
38	3430197		Shield, Motor Connector		Appelez-nous	-
40	3966743		Transmission Kit				$ 439.26

    View Diagram in Separate Window       Print Part List
