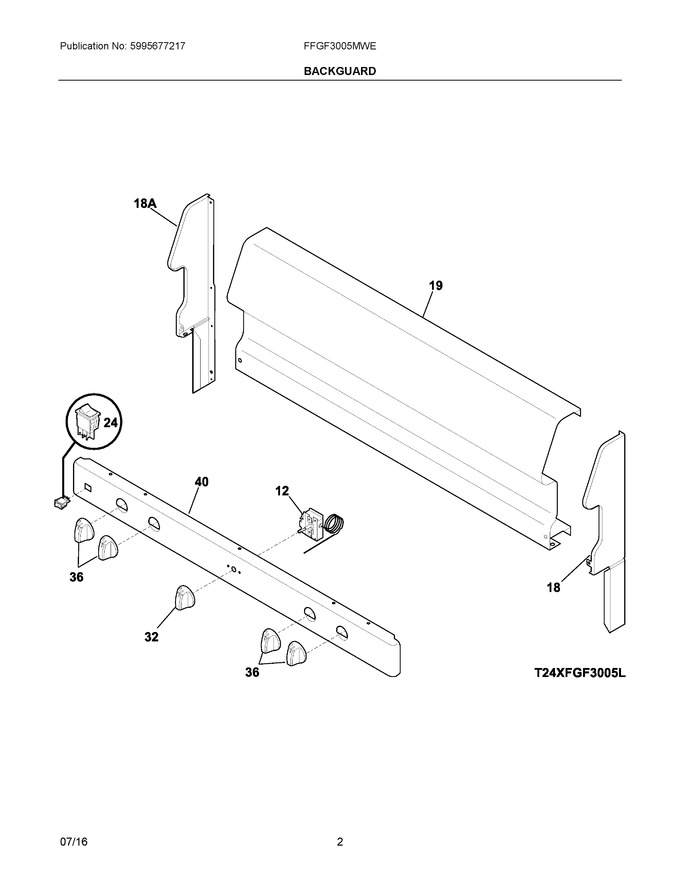

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	316032411		Thermostat			Immediately	$ 165.14
18	316263404		End Cap, White, Rh		Appelez-nous	-
19	316263376		Panel, Backguard, White		Appelez-nous	-
24	316261201		Switch, Rocker, White		Appelez-nous	-
32	316543918		Knob, Top Valve, White, (1)		Appelez-nous	-
36	316543909		Knob, Top Valve, White, (4)		Appelez-nous	-
40	316458056		Panel, Manifold, White		Appelez-nous	-
18A	316263405		End Cap, White, Lh		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
NIA	316097602		Insulator		Appelez-nous	-
