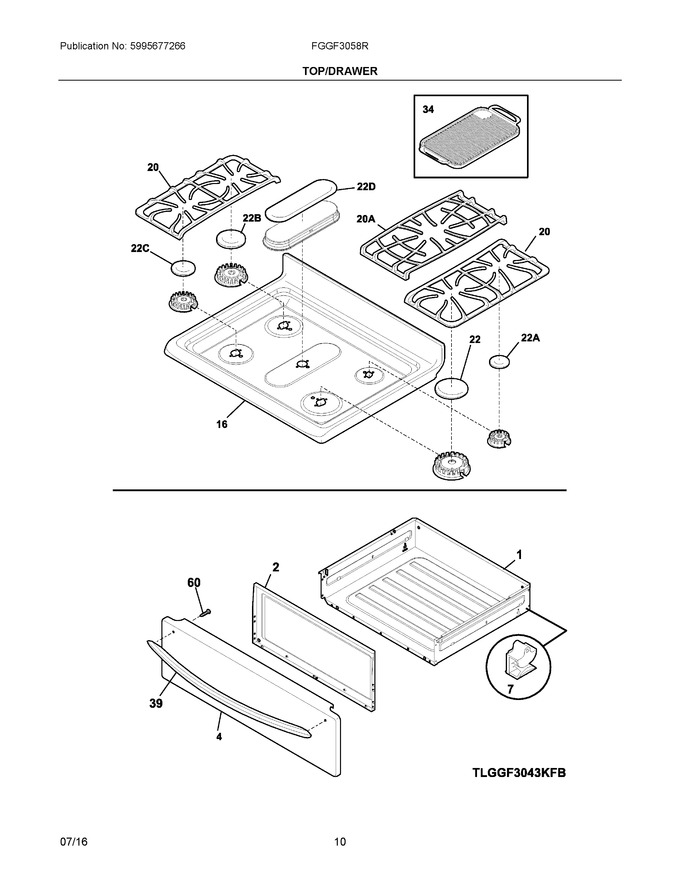

SELECT A DIAGRAM
01 - Cover Sheet
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408706 | Drawer, Utility (Replaces: 316408705) |
|
Immediately | $ 110.61 | ||||
| 2 | 5304527988 | Liner, Drawer (Replaces: 316403200) |
|
Immediately | $ 26.54 | ||||
| 4 | 5304513124 | Panel, Drawer, White (Replaces: 5304492111) |
|
$ 90.86 | |||||
| 7 | 316407402 | Glide, Drawer, Rear (Replaces: 316407400) |
|
Immediately | $ 9.86 | ||||
| 8 | 5304490938 | Glide, Drawer, Front |
|
Immediately | $ 14.41 | ||||
| 16 | 316610005 | Main Top, White |
|
$ 221.84 | |||||
| 20 | 807327101 | Grate, Burner, Black, Side, (2) |
|
$ 243.81 | |||||
| 22 | 5304508468 | Cap, 17k Burner, Black (Replaces: 316262104) |
|
$ 49.45 | |||||
| 34 | 316499902 | Griddle, Oval |
|
$ 256.33 | |||||
| 39 | 316554001 | Handle, Door/drawer, White |
|
$ 182.02 | |||||
| 20A | 807412601 | Grate, Burner, Black, Center |
|
$ 240.26 | |||||
| 22A | 5304508441 | Cap, 5k Burner, Matte, Black (Replaces: 316261704) |
|
Immediately | $ 35.04 | ||||
| 22B | 316261904 | Cap, 12k Burner, Black |
|
$ 46.36 | |||||
| 22C | 5304508442 | Cap, 9.5k Burner, Matte, Black (Replaces: 316261804) |
|
Immediately | $ 36.55 | ||||
| 22D | 316559604 | Cap, 9.5k Burner, Black, Oval |
|
$ 72.30 | |||||
| NI | 5304494425 | Harness, Ignitor (Replaces: 316580602) |
|
$ 86.45 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316260800 | Screw-shoulder, W/shoulder, #8-18 X 1/2 |
|
$ 13.46 |
