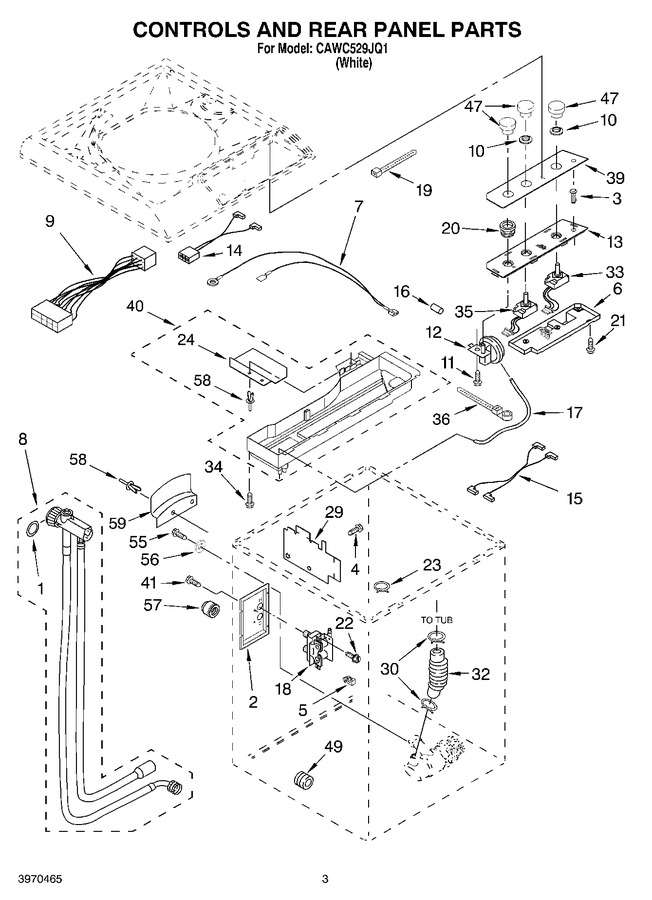

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Transmission, Motor, And Pump Parts


05 - Suspension Parts


06 - Wiring Harness Parts


07 - Water System Parts


08 - Miscellaneous Parts - Optional Parts (not Included


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Seal   (Replaces: 16123)				$ 6.93
2	3935155		Bracket-valve		Appelez-nous	-
3	3935357		Extension, Start-pause		Appelez-nous	-
4	3429189		Screw		Appelez-nous	-
5	3935875		Clip, Harness		Appelez-nous	-
6	3970439		Timer/control Board		Appelez-nous	-
7	3935929		Jumper-wire		Appelez-nous	-
8	W10849778		Hose Coupler Assembly (includes Item 1)   (Replaces: 3966810)				$ 271.76
9	3970202		Harness, Control Board		Appelez-nous	-
10	3935353		Seal		Appelez-nous	-
11	3935602		Screw, Switch Mtg.		Appelez-nous	-
12	3966789		Switch, Water Level				$ 81.22
13	3967605		Bracket, Control (must Order No. 3 And No. 39.)		Appelez-nous	-
14	3970203		Harness, Lid Switch		Appelez-nous	-
15	3970204		Harness, Pressure Switch		Appelez-nous	-
16	W10491983		Cap, Terminal   (Replaces: 3970575)		Appelez-nous	-
17	3969225		Hose, Pressure Switch				$ 9.32
18	3967755		Valve, Water Mixing				$ 93.95
19	WP2205813		Wire, Tie (2)   (Replaces: 3429563)				$ 6.95
20	3935354		Seal, Pressure Switch		Appelez-nous	-
21	3934036		Screw, Control Board (3)		Appelez-nous	-
22	WP3390631		Screw   (Replaces: 62863)				$ 7.04
23	661581		Clamp, Hose		Appelez-nous	-
24	3935672		Shield, Harness		Appelez-nous	-
29	3935995		Shield, Water Valve		Appelez-nous	-
30	WP616099		Clamp, Hose   (Replaces: 370448)			Immediately	$ 7.03
32	3429900		Hose, Pump To Tub				$ 22.54
33	3966207		Switch, Cycle Selection		Appelez-nous	-
34	3935634		Screw, Top Shield (3)		Appelez-nous	-
35	3966208		Switch, Water Temperature				$ 14.29
36	WP2205813		Wire Tie   (Replaces: 3429563)				$ 6.95
39	3935529		Panel, Console		Appelez-nous	-
40	3970443		Top, Shield Asm		Appelez-nous	-
41	3934148		Screw, 10-16 X 1/2		Appelez-nous	-
47	3968519		Knob, Temperature & Cycle Selection		Appelez-nous	-
49	3428526		Grommet, Pump (3)		Appelez-nous	-
55	3400038		Screw		Appelez-nous	-
56	3970235		Washer		Appelez-nous	-
57	70136		Cap, Threaded   (Replaces: 356054)			Immediately	$ 3.17
58	3430186		Rivet (2)		Appelez-nous	-
59	356499		Bracket, Hose Storage				$ 32.28
