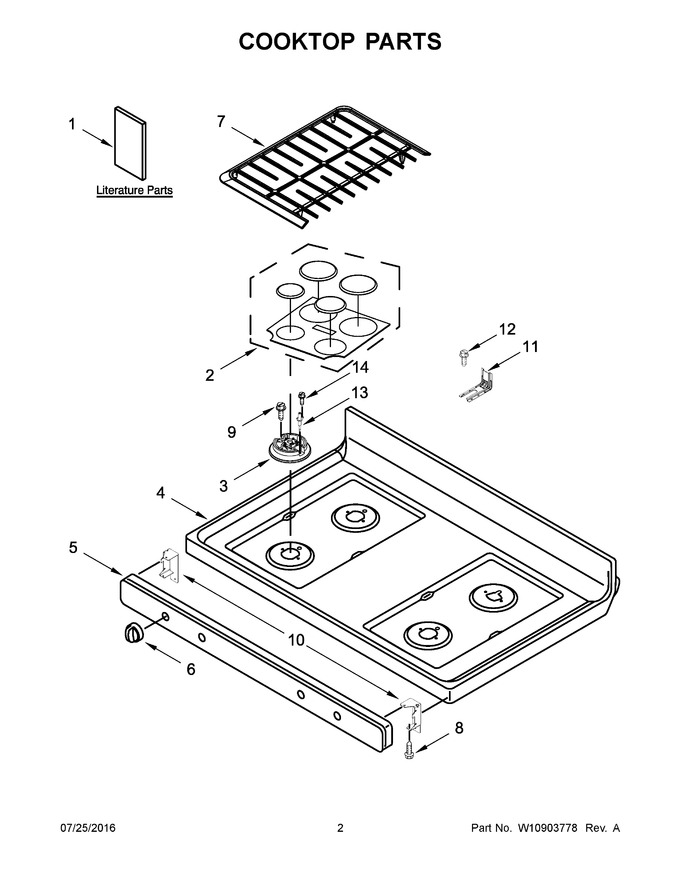

02 - Cooktop Parts
03 - Control Panel Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10720130 | Instructions, Installation |
|
- | |||||
| 2 | WPW10183375 | Set, Burner Cap (black) (Replaces: W10183375) |
|
$ 139.45 | |||||
| 3 | WPW10515455 | Assembly, Burner (17.5k) (left Front & Right Front) (Replaces: W10515455) |
|
$ 101.22 | |||||
| 4 | W10366732 | Cooktop (black) |
|
- | |||||
| 5 | 8523855 | Panel, Manifold (black) |
|
$ 158.56 | |||||
| 6 | WPW10339424 | Knob, Control (stainless) (Replaces: W10339424) |
|
$ 72.06 | |||||
| 7 | W10725871 | Kit, Grate (black) |
|
$ 267.27 | |||||
| 8 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 7.70 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.16 | ||||
| 10 | 8523249 | Bracket, Manifold |
|
- | |||||
| 11 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 25.69 | ||||
| 12 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 13 | WPW10515459 | Electrode (Replaces: W10515459) |
|
Immediately | $ 39.39 | ||||
| 14 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.47 | ||||
| 1A | W10708497 | Guide, Use And Care |
|
- | |||||
| 1B | W10708498 | Sheet, Tech (english) |
|
- | |||||
| 1C | W10713748 | Sheet, Tech (french) |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 3A | WPW10515454 | Assembly, Burner (9.5k) (left Rear) (Replaces: W10515454) |
|
$ 104.17 | |||||
| 3B | WPW10515453 | Assembly, Burner (6k) (right Rear) (Replaces: W10515453) |
|
$ 89.36 | |||||
| NI | W10334923 | Clip, Gas Wiring |
|
- | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | W11244557 | Screw (Replaces: 3196173) |
|
$ 12.86 | |||||
| NI | 3196696 | Clip, Harness |
|
- | |||||
| NI | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 7.60 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10906161 | Harness, Main (Replaces: W10797423) |
|
- | |||||
| NI | W11161843 | Harness, Bake/broil (Replaces: W10753750) |
|
$ 194.90 | |||||
| NI | W10809927 | Harness, Cooktop |
|
$ 144.81 | |||||
| NI | W10519920 | Harness, Dsi Ground |
|
$ 18.95 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 80.10 |
