01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Tub

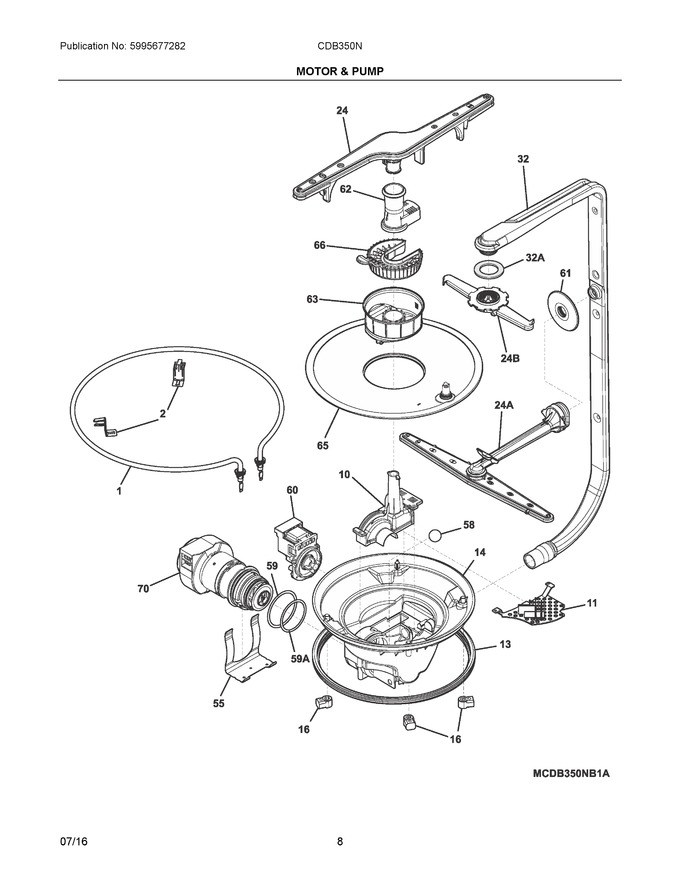

05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154825001 | Heater, Round |
|
Immediately | $ 91.19 | ||||
| 2 | 154465101 | Bracket, Heater, (2) |
|
Immediately | $ 11.34 | ||||
| 10 | 807145201 | Cover, Volute |
|
Immediately | $ 19.90 | ||||
| 11 | 807111601 | Plate, Pump Inlet |
|
Immediately | $ 17.72 | ||||
| 13 | 154246801 | Gasket, Sump |
|
$ 52.17 | |||||
| 14 | 154728201 | Sump Assembly |
|
Immediately | $ 62.37 | ||||
| 16 | 154246502 | Retainer, Sump |
|
Immediately | $ 40.40 | ||||
| 24 | 5304517203 | Spray Arm, Lower, W/heat Shield (Replaces: 5304506526) |
|
Immediately | $ 41.76 | ||||
| 32 | 5304507087 | Tube, Delivery (Replaces: 154824201) |
|
Immediately | $ 60.53 | ||||
| 55 | 5304534830 | Bracket, Motor (Replaces: 154595901) |
|
$ 5.54 | |||||
| 58 | 154246402 | Check Ball |
|
Immediately | $ 55.99 | ||||
| 59 | 154246901 | O-ring, Rear |
|
Immediately | $ 56.70 | ||||
| 60 | A00126401 | Drain Pump Assy (Replaces: 5304492415) |
|
Immediately | $ 143.00 | ||||
| 61 | 5304532204 | Grommet, Delivery Tube (Replaces: 5304506517) |
|
Immediately | $ 8.58 | ||||
| 62 | 5304532235 | Support, Spray Arm, Lower (Replaces: 5304506515) |
|
Immediately | $ 7.33 | ||||
| 63 | 5304506533 | Base, Soil Director |
|
Immediately | $ 18.68 | ||||
| 65 | 140281806020 | Filter, Polypro (Replaces: 5304506525) |
|
Immediately | $ 8.85 | ||||
| 66 | 5304532206 | Trap, Glass (Replaces: 5304506518) |
|
Immediately | $ 11.23 | ||||
| 70 | 154844301 | Motor & Pump Assy, W/o-rings |
|
Immediately | $ 306.04 | ||||
| 24A | 5304532202 | Spray Arm, Center (Replaces: 5304506740) |
|
Immediately | $ 30.37 | ||||
| 24B | 5304506516 | Spray Arm, Assembly, Upper |
|
Immediately | $ 32.14 | ||||
| 32A | 154406401 | Gasket, Delivery Tube |
|
Immediately | $ 15.46 | ||||
| 59A | 154247001 | O-ring, Front |
|
Immediately | $ 56.70 | ||||
| NI | 154753101 | Thermistor |
|
Immediately | $ 24.80 | ||||
| NI | 154783101 | Screw, Plt, 8-10 |
|
Immediately | $ 7.09 | ||||
| NIA | 154106202 | Nut, Heater, (2) |
|
Immediately | $ 18.32 | ||||
| NIA | 154741501 | Screw, Drain Motor Mtg, (3) |
|
$ 13.46 | |||||
| NIA | 154779601 | Screw, Ph, 8-10, (2) |
|
$ 1.42 | |||||
| NIA | 154611101 | Clamp, Hose, 1.29" Open, Worm Gear, (2) (Replaces: 154106801) |
|
$ 12.05 | |||||
| NIA | 154754901 | Screw, Sump Mtg, 8-16, (4) |
|
Immediately | $ 4.26 | ||||
| NIB | 807048001 | Flapper, Valve |
|
Immediately | $ 8.90 | ||||
| NIB | 154491101 | Screw, Delivery Tube |
|
$ 3.62 | |||||
| NIB | 154289801 | Shield, Heater Terminal |
|
$ 7.33 |
