SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard

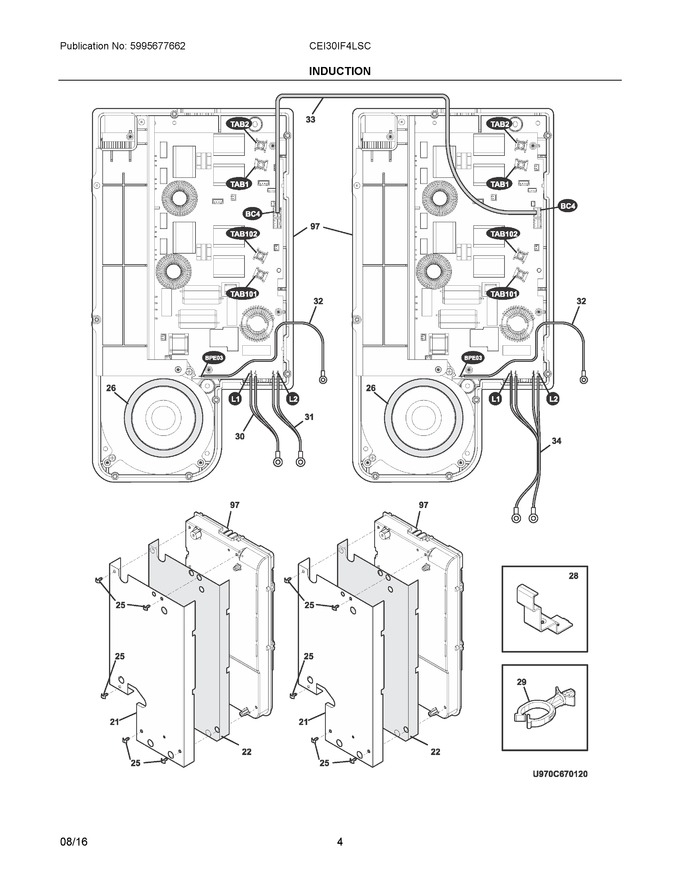

03 - Induction


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
21	316306200		Shield, Heat		Appelez-nous	-
22	316306300		Insulation, Housing		Appelez-nous	-
25	316303100		Fastener, Mounting, (6)		Appelez-nous	-
26	316302203		Seals, Ring, Fans, (2)				$ 20.58
28	316301900		Bracket, Mounting, Induction Hsg.		Appelez-nous	-
29	316302100		Standoff, Wiring		Appelez-nous	-
30	5304519000		Harness, Wiring, L1 To X1-x2   (Replaces: 316525625)				$ 18.00
31	5304518999		Harness, Wiring, L2 To X4-x5   (Replaces: 316525626)				$ 19.42
32	316580517		Harness, Wiring, Aux, Grnd Teis				$ 14.18
33	5304519002		Harness, Wiring, Auxiliary   (Replaces: 316580514)				$ 29.48
34	5304519001		Harness, Wiring, Aux, L1-l2   (Replaces: 316580515)				$ 41.72
97	316305401		Control Assembly, Induction, Complete, W/boards & Fan				$ 712.03
NI	5304506251		Harness-filter Assembly, Indution		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316114100		Spacer				$ 60.96

    View Diagram in Separate Window       Print Part List
