01 - Cover Sheet

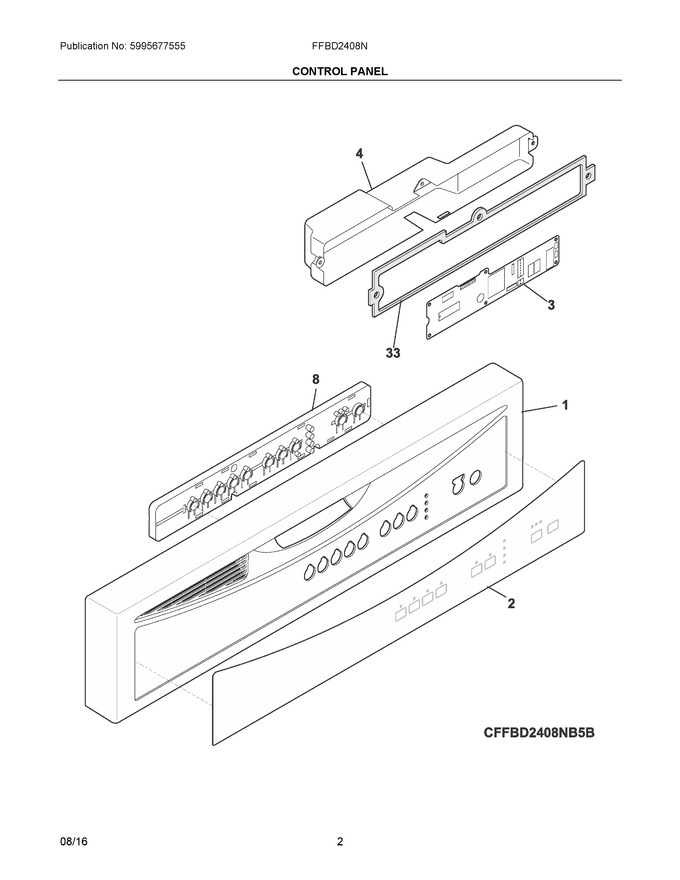

02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304506543 | Panel, Console, Black |
|
Immediately | $ 84.37 | ||||
| 2 | 5304507085 | Insert, Control Panel, Black |
|
$ 49.62 | |||||
| 3 | 5304512731 | Board, Control, K4 (Replaces: 5304506728) |
|
Immediately | $ 138.42 | ||||
| 4 | 154552101 | Cover, Control |
|
$ 57.17 | |||||
| 8 | 5304507086 | Switch Assembly, 8 Button |
|
$ 99.77 | |||||
| 33 | 154553501 | Gasket, Cover |
|
$ 42.34 | |||||
| NI | 5304504853 | Harness, Wiring, Main |
|
Immediately | $ 126.70 | ||||
| NI | 808612222 | Energy Guide |
|
- | |||||
| NI | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 9.22 | |||||
| NI | 154783101 | Screw, Plt, 8-10 |
|
Immediately | $ 7.09 |
