01 - Cover Sheet
02 - Cook Top

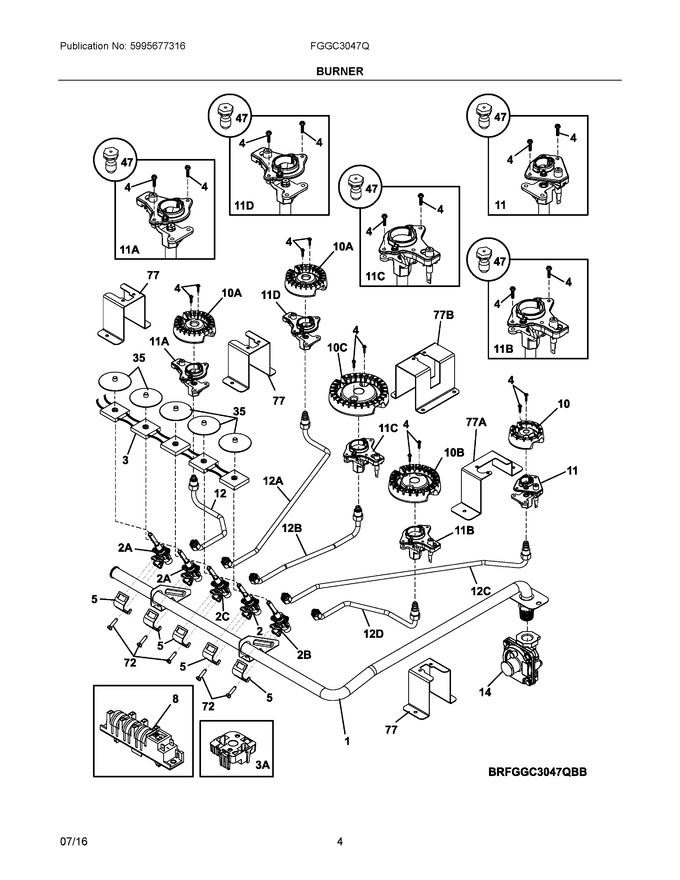

03 - Burner
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304505687 | Manifold, Tube, 30", 5 Valve |
|
- | |||||
| 2 | 5304505693 | Valve, Saddle, 680 Btu, Orange Stem |
|
$ 80.85 | |||||
| 3 | 305595107 | Switch Assembly, Ignitor, W/harness |
|
$ 97.07 | |||||
| 4 | 316240600 | Screw, Hex Wash, 6-32 X .485 (Replaces: 5304472956) |
|
Immediately | $ 12.13 | ||||
| 5 | 357733402 | Bracket, Valve Fixing |
|
$ 9.66 | |||||
| 8 | 5304537114 | Module, Spark, 6 Outputs (Replaces: 5304505696) |
|
Immediately | $ 47.88 | ||||
| 10 | 316438200 | Burner, Sealed, 5k |
|
Immediately | $ 56.70 | ||||
| 11 | 5304498786 | Ignitor/orifice Assy., Top Burner, 5k |
|
$ 82.93 | |||||
| 12 | 5304499397 | Tube, Burner, Lh Front |
|
- | |||||
| 14 | 5304519943 | Regulator, Pressure (Replaces: 318122727) |
|
$ 129.93 | |||||
| 35 | 807164301 | Bushing, Insulating |
|
- | |||||
| 47 | 5304505703 | Lp Kit, Gas Conversion |
|
$ 68.04 | |||||
| 72 | 305517500 | Screw, Hex Zc, M4 X 16, (8) |
|
$ 6.82 | |||||
| 77 | 5304498799 | Bracket, Ignitor/orifice, Mounting |
|
$ 18.43 | |||||
| 10A | 316558300 | Burner, Sealed, 9.5k |
|
Immediately | $ 52.45 | ||||
| 10B | 316438600 | Burner, Sealed, 14k |
|
Immediately | $ 79.80 | ||||
| 10C | 316438400 | Burner, Sealed, 18.2k |
|
Immediately | $ 83.42 | ||||
| 11A | 5304498787 | Ignitor/orifice Assy., Top Burner, 9.5k |
|
$ 119.83 | |||||
| 11B | 5304498788 | Ignitor/orifice Assy., Top Burner, 12k |
|
$ 134.19 | |||||
| 11C | 5304499339 | Ignitor/orifice Assy., Top Burner, 18k |
|
$ 165.86 | |||||
| 11D | 5304499396 | Ignitor/orifice Assy., Top Burner, 7.5k |
|
$ 60.96 | |||||
| 12A | 5304499398 | Tube, Burner, Lh Rear |
|
- | |||||
| 12B | 5304498883 | Tube, Burner, Center |
|
- | |||||
| 12C | 5304499399 | Tube, Burner, Rh Rear |
|
- | |||||
| 12D | 5304499400 | Tube, Burner, Rh Front |
|
- | |||||
| 2A | 5304505690 | Valve, Saddle, 850 Btu, Green Stem |
|
Immediately | $ 69.77 | ||||
| 2B | 5304505691 | Valve, Saddle, 1125 Btu, Blue Stem |
|
Immediately | $ 69.01 | ||||
| 2C | 5304505692 | Valve, Saddle, 1800 Btu, Red Stem |
|
$ 71.29 | |||||
| 3A | 5304505694 | Adapter, Switch Mtg. |
|
$ 15.92 | |||||
| 77A | 5304498800 | Bracket, Ignitor/orifice, 5k Burner, Mounting |
|
- | |||||
| 77B | 5304498888 | Bracket, Ignitor/orifice, Center Burner, Mounting |
|
$ 19.85 | |||||
| NI | 305338602 | Screw, (3) |
|
- | |||||
| NI | 305309701 | Screw, Phil, 4.2 X 6.5, (20) |
|
$ 5.67 | |||||
| NIA | 318199780 | Wiring Harness, Ignitor |
|
$ 100.56 |
