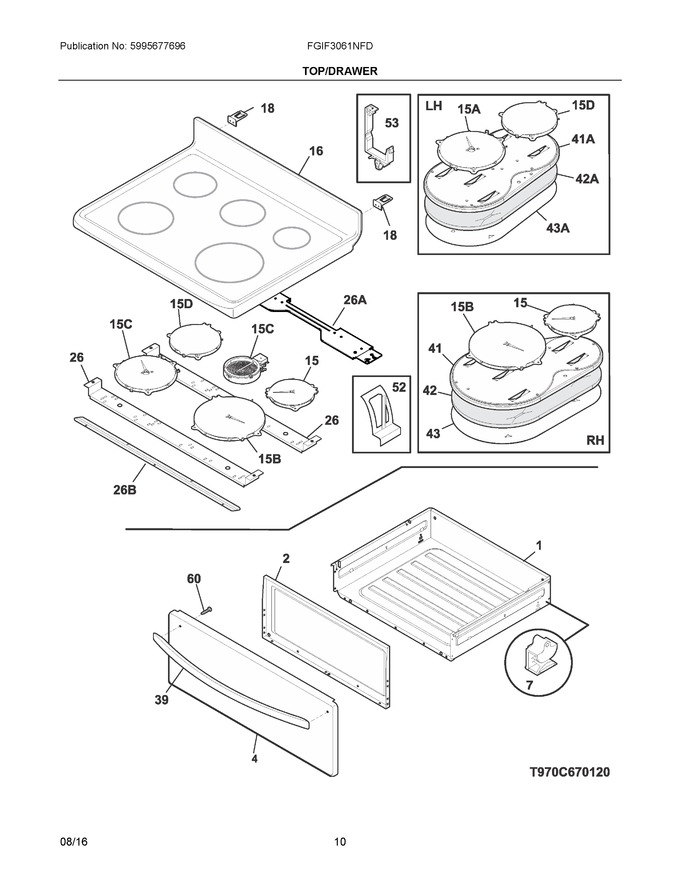

05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408706 | Drawer, Utility (Replaces: 316408703) |
|
Immediately | $ 110.61 | ||||
| 2 | 5304527989 | Liner, Drawer (Replaces: 316403300) |
|
$ 28.83 | |||||
| 4 | 5304512039 | Panel, Drawer Front, Stainless (Replaces: 316409421) |
|
$ 135.50 | |||||
| 7 | 316407402 | Glide, Drawer, Rear (Replaces: 316407400) |
|
Immediately | $ 9.86 | ||||
| 15 | 316305900 | Element, Induction Coil, 140mm |
|
$ 227.51 | |||||
| 16 | 316282980 | Maintop Assembly, Glass/smoothtop, Black |
|
$ 554.99 | |||||
| 18 | 316580800 | Bracket-hinge, Main Top |
|
Immediately | $ 9.86 | ||||
| 26 | 316427604 | Channel, Element Support, (2) |
|
- | |||||
| 39 | 316554010 | Handle, Door/drawer, Stainless (Replaces: 316554008) |
|
Immediately | $ 168.44 | ||||
| 41 | 316306401 | Panel, Mounting, Induction, Rh |
|
$ 155.93 | |||||
| 42 | 316306800 | Insulation, Rh |
|
$ 88.60 | |||||
| 43 | 316306601 | Shield, Heat, Rh |
|
$ 63.79 | |||||
| 52 | 316461700 | Clip, Element Mtg |
|
$ 12.05 | |||||
| 53 | 316301200 | Clip, Wiring, Natural, (2), Induction |
|
- | |||||
| 60 | 5303288572 | Screw-handle Mtg |
|
- | |||||
| 15A | 316305800 | Element, Induction Coil, 180mm, Lh Front |
|
$ 277.57 | |||||
| 15B | 316305600 | Element, Induction Coil, 260mm, Rh Front |
|
$ 331.93 | |||||
| 15C | 316307501 | Element, Warmer Zone, 120mm |
|
$ 172.22 | |||||
| 15D | 316306000 | Element, Induction Coil, 120mm |
|
$ 238.89 | |||||
| 26A | 316498200 | Bracket-support, Chassis, Aluminum |
|
$ 52.33 | |||||
| 26B | 316214202 | Bracket, Chassis Support, Front |
|
$ 25.41 | |||||
| 41A | 316306501 | Panel, Mounting, Induction, Lh |
|
- | |||||
| 42A | 316306900 | Insulation, Lh |
|
$ 94.55 | |||||
| 43A | 316306701 | Shield, Heat, Lh |
|
$ 73.00 | |||||
| NI | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black |
|
$ 13.46 | |||||
| NI | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 | |||||
| NI | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NI | 316468100 | Cleaner, Smoothtop, W/sponge |
|
$ 4.88 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316021132 | Screw, 8-18 X 11/16, Black, (3) |
|
$ 12.89 | |||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NIA | 5308014215 | Screw, 6-20 X 0.312 |
|
$ 2.28 |
