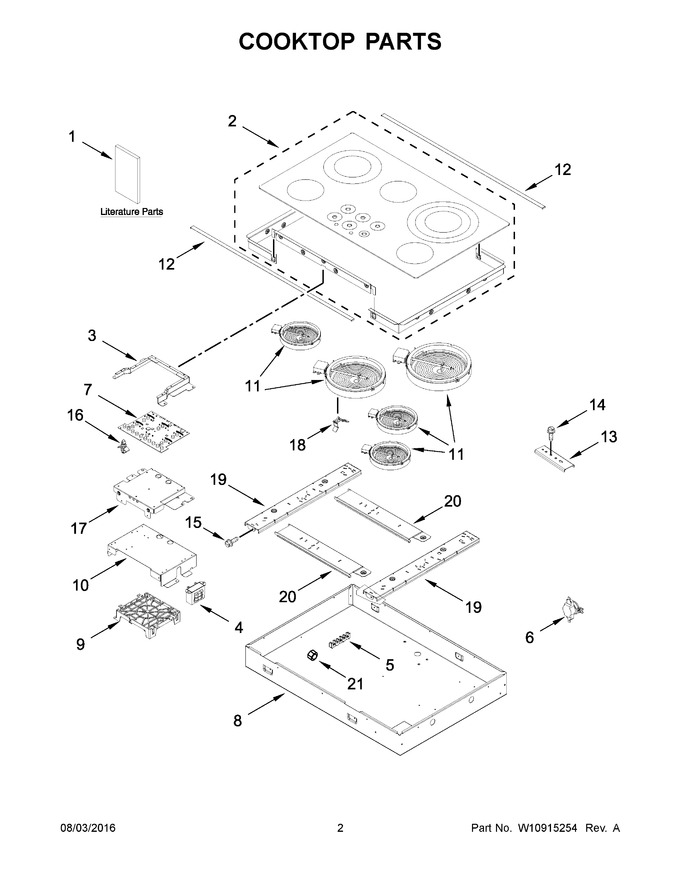

02 - Cooktop Parts
03 - Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10353374 | Instructions, Installation |
|
- | |||||
| 2 | W10365150 | Cooktop (black) (Replaces: W10566707) |
|
- | |||||
| 3 | W10311897 | Sheild, Outer |
|
- | |||||
| 4 | WP9760588 | Transformer, Light (Replaces: 9760588) |
|
$ 237.07 | |||||
| 5 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 31.65 | ||||
| 6 | W10464566 | Switch, Tod High Limit |
|
Immediately | $ 167.81 | ||||
| 7 | WPW10333980 | Interface, User (Replaces: W10333980) |
|
$ 381.21 | |||||
| 8 | W10421512 | Box, Burner |
|
- | |||||
| 9 | W10915424 | Manager, Appliance (Replaces: W10905138) |
|
- | |||||
| 10 | W10311795 | Plate, Switch |
|
- | |||||
| 11 | W11171119 | Element (1200w) (left Front, Right Front, & Center) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 12 | W10433736 | Trim, Cooktop (stainless Models Only) |
|
- | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 16 | W10225914 | Support, Locking |
|
- | |||||
| 17 | W10311794 | Plate, Support |
|
$ 149.35 | |||||
| 18 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 19 | W10311788 | Rail, Vertical |
|
- | |||||
| 20 | W10311793 | Rail, Horizontal |
|
- | |||||
| 21 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 6.98 | ||||
| 11A | WPW10275049 | Element (2500/1200w) (left Rear) (Replaces: W10275049) |
|
Immediately | $ 282.81 | ||||
| 11B | W10823720 | Element (3000w Triple) (right Rear) (Replaces: W10187839) |
|
Immediately | $ 302.91 | ||||
| 1A | W10373101 | Instructions, Undercounter Installation |
|
- | |||||
| 1B | W10346696 | Guide, Use & Care |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1E | W10906259 | Sheet, Tech (english) |
|
- | |||||
| 1F | W10906263 | Sheet, Tech (french) |
|
- | |||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.33 | |||||
| NI | FE02313 | Bushing |
|
- | |||||
| NI | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 105.67 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10905144 | Harness, Cooktop |
|
- | |||||
| NI | W10291385 | Conduit |
|
$ 108.86 | |||||
| NI | W10316660 | Gasket |
|
$ 93.83 | |||||
| NI | 8008P068-60 | Grommet, Wire |
|
$ 14.39 | |||||
| NI | 7111P020-60 | Clamp, Wire |
|
- |
