01 - Cover Sheet

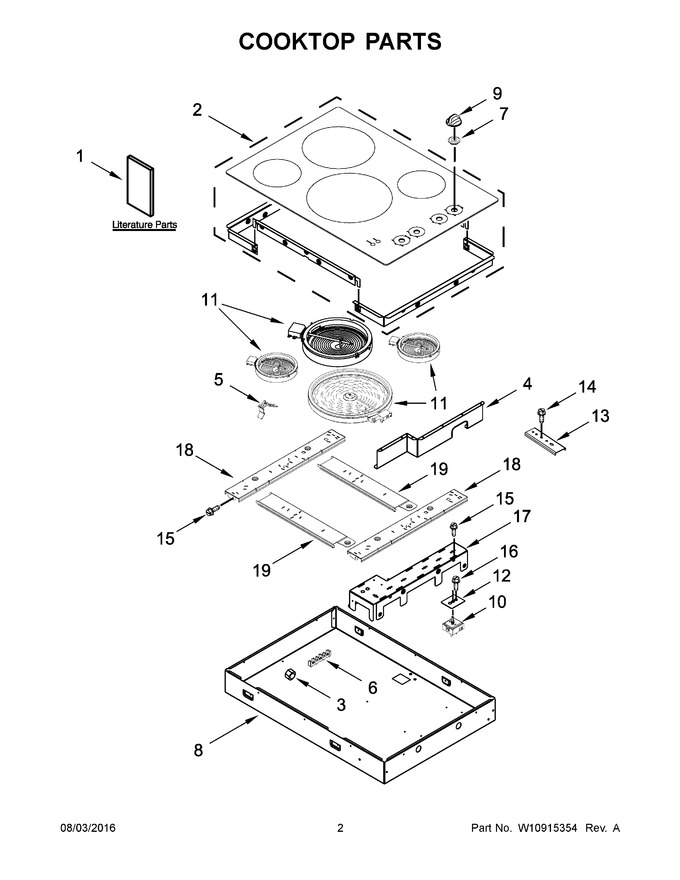

02 - Cooktop Parts
03 - Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10353374 | Instructions, Installation |
|
- | |||||
| 2 | W10915734 | Cooktop (black) (Replaces: W10883602) |
|
$ 482.41 | |||||
| 3 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 6.98 | ||||
| 4 | W10311796 | Shield, Switch |
|
- | |||||
| 5 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 6 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 31.65 | ||||
| 7 | WPW10293874 | Grommet (black) (Replaces: W10293874) |
|
Immediately | $ 7.25 | ||||
| 8 | N/P | Box, Burner (not Serviced) |
|
- | |||||
| 9 | W11211475 | Knob, Control (black) (Replaces: W10480475) |
|
$ 64.80 | |||||
| 10 | WPW10326246 | Switch, Infinite (left Front) (Replaces: W10326246) |
|
$ 131.16 | |||||
| 11 | W11171119 | Element (1200w) (left Front & Right Rear) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 12 | 3183956 | Seal, Switch Cover |
|
$ 41.81 | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 16 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.26 | ||||
| 17 | W10484349 | Plate, Switch |
|
- | |||||
| 18 | W10457917 | Rail, Vertical |
|
- | |||||
| 19 | W10311790 | Rail, Horizontal |
|
- | |||||
| 10A | WPW10244639 | Switch, Infinite (right Front) (Replaces: W10244639) |
|
Immediately | $ 127.10 | ||||
| 10B | WP74007840 | Switch, Infinite (right Rear) (Replaces: 7403P755-60) |
|
Immediately | $ 163.25 | ||||
| 10C | W10861720 | Switch, Infinite (left Rear) (Replaces: W10312187) |
|
$ 128.64 | |||||
| 11A | WP8273993 | Element (1800w) (left Rear) (Replaces: 8273993) |
|
Immediately | $ 220.06 | ||||
| 11B | W11047722 | Element (2500w) (right Front) (Replaces: 8273992) |
|
Immediately | $ 119.21 | ||||
| 1A | W10373101 | Instructions, Undercounter Installation |
|
- | |||||
| 1B | W10895306 | Guide, Use & Care |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1E | W10291395 | Wiring Diagram |
|
- | |||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.33 | |||||
| NI | 8008P068-60 | Grommet, Wire |
|
$ 14.39 | |||||
| NI | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 105.67 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10406515 | Harness, Main |
|
$ 236.08 | |||||
| NI | W11190476 | Harness, Light (Replaces: W10257163) |
|
Immediately | $ 174.46 | ||||
| NI | W10316661 | Gasket |
|
Immediately | $ 86.42 | ||||
| NI | 7111P020-60 | Clamp, Wire |
|
- |
