SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

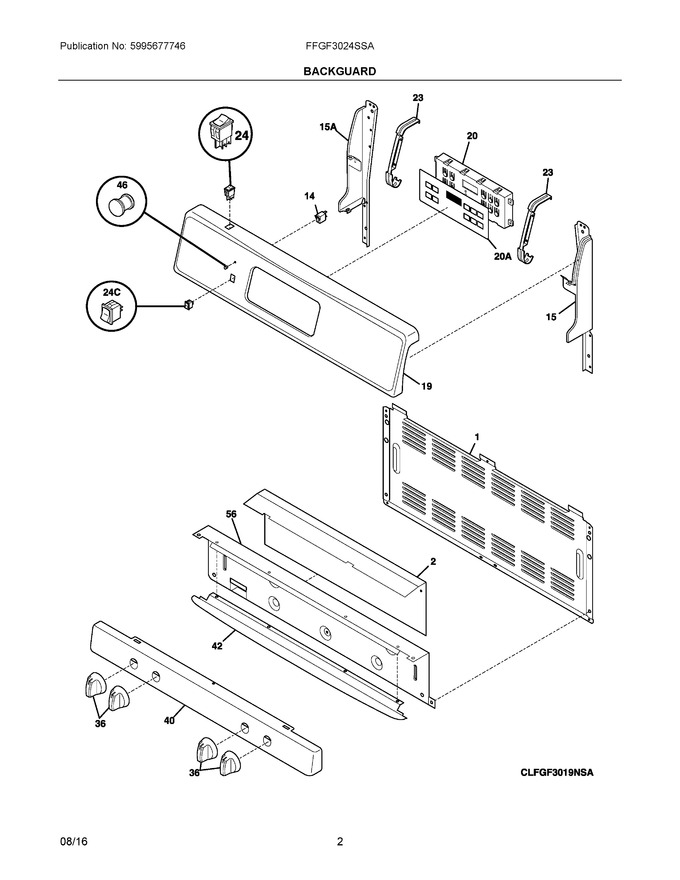

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281800)				$ 57.64
2	316497600		Shield, Backguard, Inner				$ 66.31
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 53.57
15	316411405		Support, Backguard, Black, Rh				$ 83.95
19	316456549		Panel, Backguard, Stainless		Appelez-nous	-
20	5304515070		Clock/timer, Electronic, Es300   (Replaces: 316557103)				$ 293.94
23	316441600		Bracket-clock Mtg, Black				$ 20.48
24	5304527841		Switch, Rocker, Black, Oven Light   (Replaces: 316448700)			Immediately	$ 11.38
36	316543907		Knob, Top Valve, Black, (3)				$ 56.70
40	316286204		Panel-manifold, Black		Appelez-nous	-
42	316416204		Trim, Extrusion, Black   (Replaces: 316416200)				$ 43.99
46	316437900		Lens, Indicator Light				$ 11.45
56	316230705		Shield, Backguard, Inner		Appelez-nous	-
15A	316411404		Support, Backguard, Black, Lh				$ 83.95
20A	316419142		Overlay, Clock, Black, Es300		Appelez-nous	-
24C	316496100		Switch-rocker, Black		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NIA	316021104		Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt				$ 7.79
NIAA	316447247		Overlay, Clock, Stainless, Es330		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
