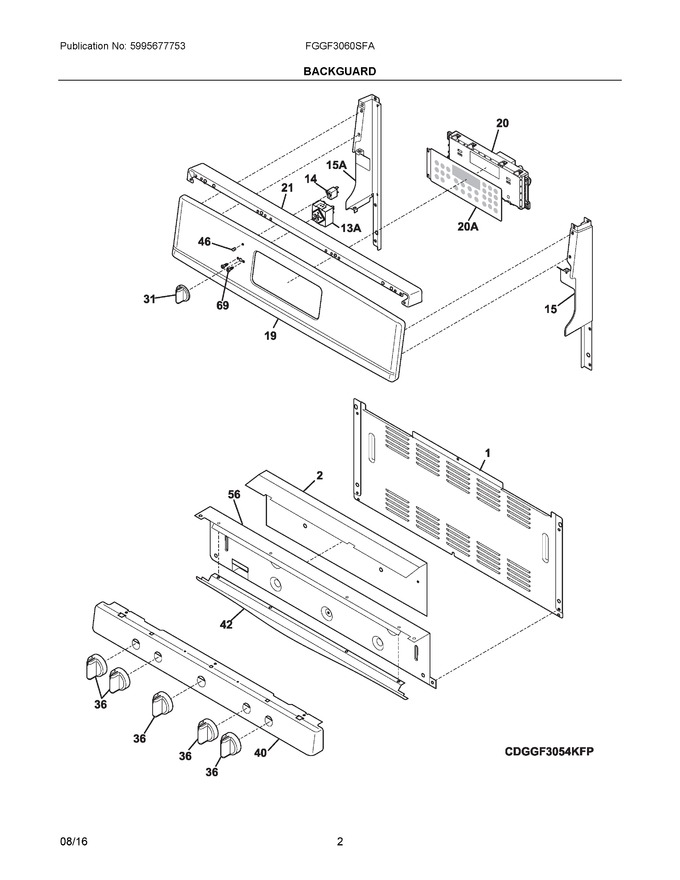

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316557600		Shield, Rear Wall				$ 70.04
2	316497601		Shield, Backguard, Inner				$ 49.40
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 53.57
15	807437109		End Cap, Backguard, Black, Rh   (Replaces: 807437103)				$ 31.66
19	316572430		Panel, Backguard, Stainless		Appelez-nous	-
20	316560118		Controller, Electronic, Es540			Immediately	$ 426.47
21	316546605		Cap, Backguard, Black, Top   (Replaces: 316546601)				$ 66.91
31	316564407		Knob, Control, Stainless, (5)				$ 121.35
36	316564509		Knob, Top Valve, Stainless, (5)				$ 131.96
40	316606119		Panel-manifold, Stainless				$ 178.99
42	316416204		Trim, Extrusion, Black   (Replaces: 316416200)				$ 43.99
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
56	316230705		Shield, Backguard, Inner		Appelez-nous	-
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
13A	5304508926		Switch, Infinite, Warmer   (Replaces: 316095503)			Immediately	$ 84.18
15A	807437110		End Cap, Backguard, Black, Lh   (Replaces: 807437104)				$ 29.48
20A	316419828		Overlay, Clock, Black, Es540			Immediately	$ 18.83
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	316021104		Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt				$ 7.79
