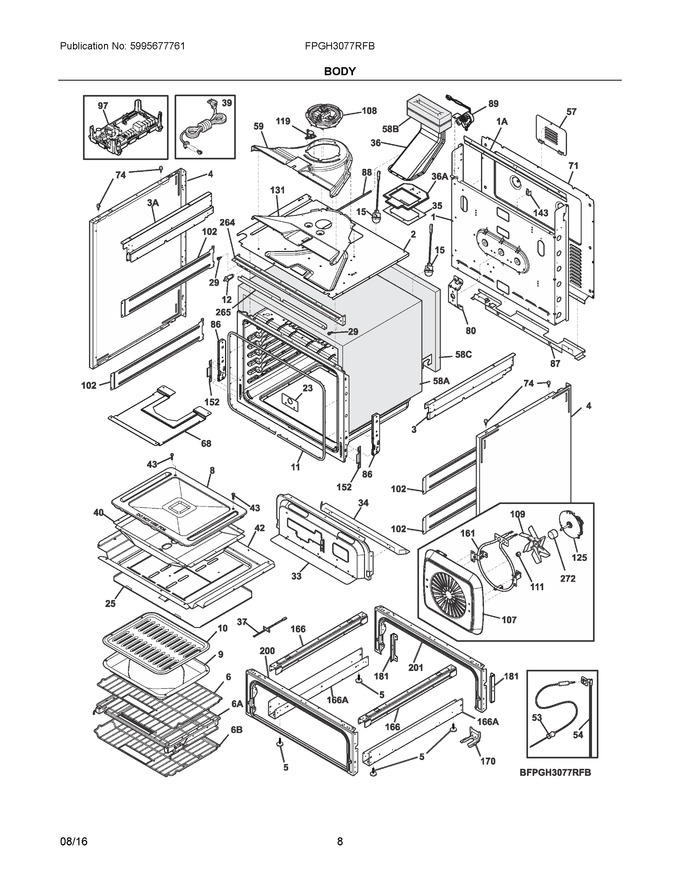

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	809146001		Panel, Main Back				$ 99.38
2	809145701		Shield, Insulation, Top		Appelez-nous	-
3	809128202		Panel, Upper Side, Rh		Appelez-nous	-
4	807226106		Panel, Bodyside, Black, (2)				$ 136.69
5	318175510		Leg, Leveling   (Replaces: 5304501934)			Immediately	$ 24.26
6	139011600		Rack, Oven, W/handle				$ 124.74
8	139005003		Panel, Oven Bottom				$ 131.64
9	318138801		Pan, Broileroptional Access0ry		Appelez-nous	-
10	318126401		Insert, Broiler Panoptional Access0ry		Appelez-nous	-
11	139036701		Seal, Oven Door				$ 98.99
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
23	139004500		Cover, Broil Opening		Appelez-nous	-
25	318291900		Bracket, Shield, Lower				$ 94.27
29	316517600		Bumper, Front, Main				$ 12.05
33	808734801		Panel, Valve Mtg.		Appelez-nous	-
34	318289402		Panel, Valve Filler		Appelez-nous	-
35	318291300		Seal, Flue Cavity		Appelez-nous	-
36	5304502424		Fluebox, Assembly				$ 192.74
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 48.13
39	5304534000		Cord, Electric Power   (Replaces: 807108201)			Immediately	$ 33.37
40	139004700		Box, Oven Burner				$ 109.85
42	139004800		Shield, Heat, Lower				$ 127.58
43	316282700		Screw, 8-18 X 1.438, Oven Bottom   (Replaces: 3131732)				$ 9.93
53	5304504202		Probe, Meat Temp, Red			Immediately	$ 106.19
54	139017203		Receptacle Assy, Meat Probe			Immediately	$ 153.09
57	316283600		Cover, Access				$ 12.50
59	139078002		Duct, Cooling Fan, Top				$ 78.67
68	5304498079		Shield, Broil Burner, Top		Appelez-nous	-
71	809123201		Shield, Rear, Lower				$ 63.08
74	318141910		Bumper, Bodyside, (4)				$ 3.68
80	139021101		Bracket, Support, Chassis/fan				$ 14.89
86	139026900		Receptacle, Hinge, Dual Spring				$ 32.61
87	318260641		Bracket, Cable Mtg.		Appelez-nous	-
88	808721601		Rod, Door Latch				$ 53.85
89	5304528925		Motor Assy., Door Latch   (Replaces: 808721803)				$ 117.12
97	316472807		Circuit Board, Assembly, Ovc1, W/housing   (Replaces: 316472802)			Immediately	$ 366.77
102	139004100		Panel, Reinforcement, (2)				$ 20.89
107	139013903		Cover, Convection Fan				$ 46.86
108	807123002		Motor Assembly, Fan, No He Sensor				$ 203.41
109	318398302		Blade, Fan, Convection   (Replaces: 139009100)			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
119	807144901		Thermostat, Safety, 110c Deg				$ 58.39
125	139008600		Motor, Fan, Convection				$ 189.70
131	139078102		Duct, Cooling Fan, Bottom				$ 64.49
143	318172904		Support, Wire		Appelez-nous	-
152	318338520		Bracket, Lateral Panel, (2)				$ 18.38
161	139013800		Element, Convection, 350w				$ 87.97
166	318298410		Bracket, Base Support, (2)				$ 75.83
170	5304486410		Kit, Anti Tip, W/brkt & Instru				$ 158.50
181	5304500125		Bracket, Support, Rear Side Panel, (2)		Appelez-nous	-
200	808734602		Frame, Drawer Front, Black				$ 108.44
201	808734603		Frame, Drawer Rear, Black				$ 78.67
264	809145304		Bracket, Support, Black, Control Panel		Appelez-nous	-
265	5304500138		Channel, Support, Front		Appelez-nous	-
272	139021700		Tube, Convection Fan				$ 17.72
166A	5304511884		Bracket, Base Support, Lower, (2)   (Replaces: 318298405)				$ 65.98
1A	5304500171		Bracket, Wire Filler, Rear		Appelez-nous	-
36A	139008301		Support, Panel, Flue		Appelez-nous	-
3A	809128201		Panel, Upper Side, Lh				$ 57.17
58A	5304501901		Insulation, Wrapper		Appelez-nous	-
58B	5304500152		Insulation, Flue		Appelez-nous	-
58C	5304500109		Insulation, Oven, Back		Appelez-nous	-
6A	139013314		Rack Assembly, Gliding, W/handle				$ 236.99
6B	139012400		Rack, Oven, Offset, W/handle				$ 181.34
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	5304510184		Harness, Wiring, Main   (Replaces: 5304502425)				$ 203.24
NI	808041201		Harness, Wiring, Oven Ignitors				$ 51.57
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NI	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
NIA	318579001		Bracket, Wire				$ 11.08
NIA	318167300		Clip, Rod				$ 2.84
NIA	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 12.89
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
NIB	5303311164		Spring				$ 18.95
NIC	5304436864		Washer, Flat				$ 2.84
