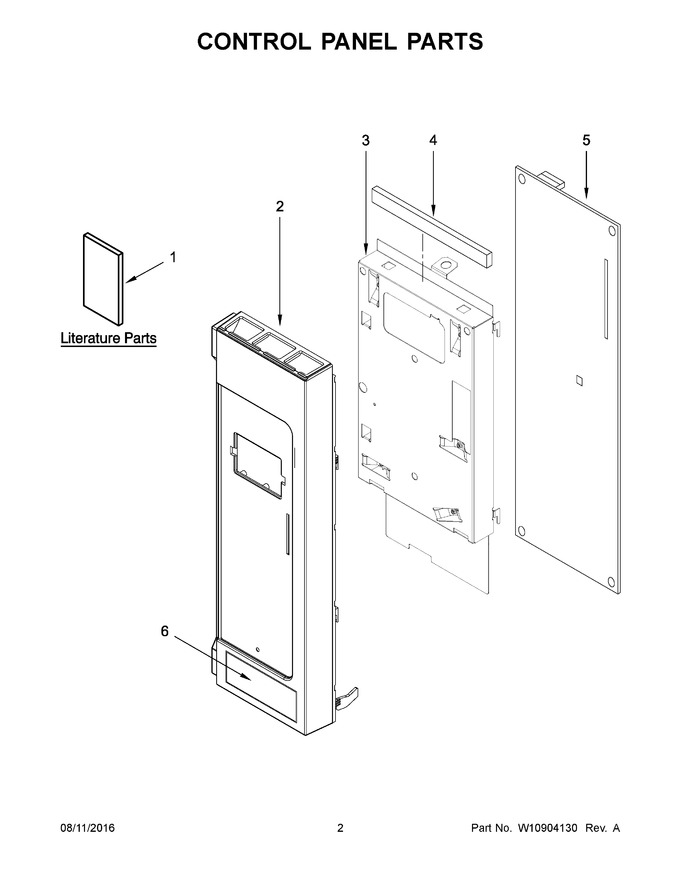

02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10883641 | Installation Instructions |
|
- | |||||
| 2 | W10918927 | Control Panel Assembly (includes Lens And Membrane Switch) (stainless) (Replaces: W10846301) |
|
$ 310.08 | |||||
| 3 | W10833366 | Backer, Control |
|
- | |||||
| 4 | W10833531 | Seal, Control |
|
$ 21.01 | |||||
| 5 | W10895560 | Microcomputer (Replaces: W10844809) |
|
$ 222.08 | |||||
| 1A | W10892122 | Use And Care Guide |
|
- | |||||
| 1B | W10851836 | Quick Reference Guide |
|
- | |||||
| 1C | W10844817 | Tech Sheet |
|
- |
