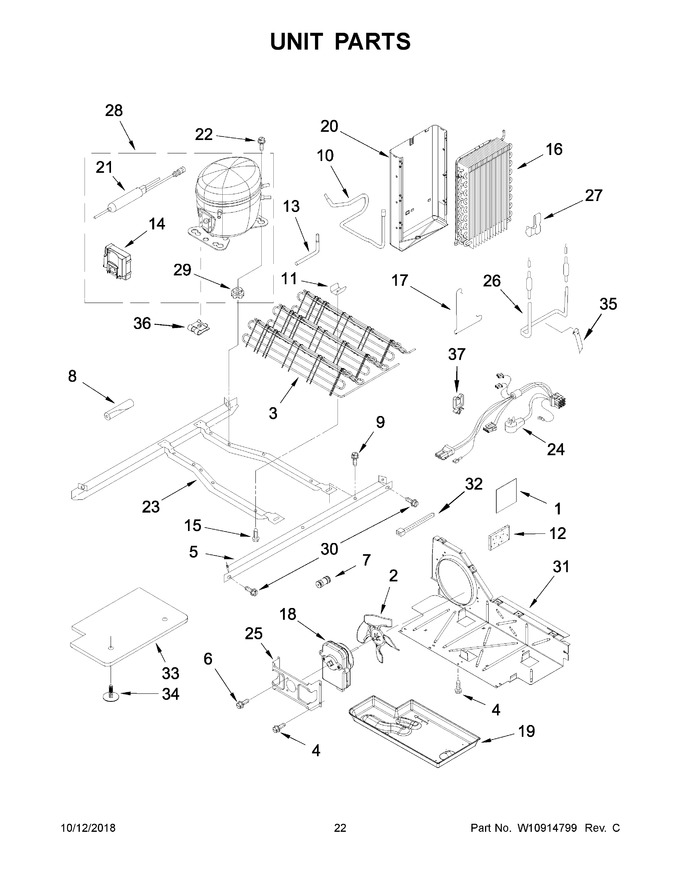

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2217070 | Pad, Foam |
|
$ 18.93 | |||||
| 2 | W11458267 | Blade, Fan (Replaces: 2225834) |
|
Immediately | $ 21.59 | ||||
| 3 | 2324712 | Assembly, Condenser |
|
$ 277.25 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.05 | ||||
| 5 | W10900442 | Rail, Unit Mounting |
|
- | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 9.51 | |||||
| 7 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 26.15 | ||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 18.27 | ||||
| 9 | WP489427 | Screw (Replaces: 489427) |
|
$ 6.72 | |||||
| 10 | W10745337 | Tube, Suction |
|
- | |||||
| 11 | W10683556 | Clip, Condenser (Replaces: 2311725) |
|
$ 16.61 | |||||
| 12 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 12.66 | ||||
| 13 | 2325479 | Tube, Process |
|
- | |||||
| 14 | W10920537 | Inverter Box Assembly (Replaces: W10756737) |
|
$ 347.36 | |||||
| 15 | W11544659 | Screw (Replaces: 8281232) |
|
$ 12.30 | |||||
| 16 | WP2188823 | Evaporator (Replaces: 2188823) |
|
Immediately | $ 326.99 | ||||
| 17 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 18 | WP2188874 | Motor, Condenser (Replaces: W11042567) |
|
Immediately | $ 102.56 | ||||
| 19 | WPW10614158 | Tray, Evaporator (Replaces: W10614158) |
|
Immediately | $ 101.86 | ||||
| 20 | W10194475 | Assembly, Heat Shield And Drain Pan |
|
- | |||||
| 21 | WPW10143759 | Drier (Replaces: W10771114) |
|
Immediately | $ 27.70 | ||||
| 22 | W11417341 | Screw (Replaces: W10476309) |
|
$ 12.06 | |||||
| 23 | W10900446 | Frame, Unit Mounting (includes Unit Mounting Rail) |
|
- | |||||
| 24 | W10756526 | Unit, Harness |
|
- | |||||
| 25 | WP2181929 | Bracket, Fan Mounting (Replaces: 2181929) |
|
$ 11.08 | |||||
| 26 | WP2323198 | Heater, Defrost (Replaces: 2188175) |
|
Immediately | $ 81.63 | ||||
| 27 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 28 | W11301889 | Compressor |
|
Immediately | $ 663.31 | ||||
| 29 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 6.47 | ||||
| 30 | 489340 | Bolt |
|
- | |||||
| 31 | W10332806 | Baffle, Air |
|
$ 102.82 | |||||
| 32 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.11 | |||||
| 33 | W10836750 | Assembly, Unit Cover (bottom) |
|
$ 83.76 | |||||
| 34 | 489396 | Clip |
|
$ 9.65 | |||||
| 35 | W11611126 | Probe, Heat (Replaces: W10895163) |
|
$ 19.85 | |||||
| 36 | W10697017 | Clip, Retaining |
|
- | |||||
| 37 | W11233642 | Clip (Replaces: 2223913) |
|
- | |||||
| NI | 978026 | Valve, Access (5/16") |
|
Immediately | $ 115.28 | ||||
| NI | SF5538 | Valve, Access (3/8") (Replaces: 978027) |
|
$ 19.48 | |||||
| NI | 978029 | Valve, Access (5/8") |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4") |
|
$ 117.64 | |||||
| NI | 876764 | Valve, Access (3/16") |
|
Immediately | $ 82.22 | ||||
| NI | WP978025 | Valve, Access (1/4") (Replaces: 978025) |
|
Immediately | $ 94.73 | ||||
| NI | N/P | Refrigerant Charge 5.3 Oz (r-134a) |
|
- |
