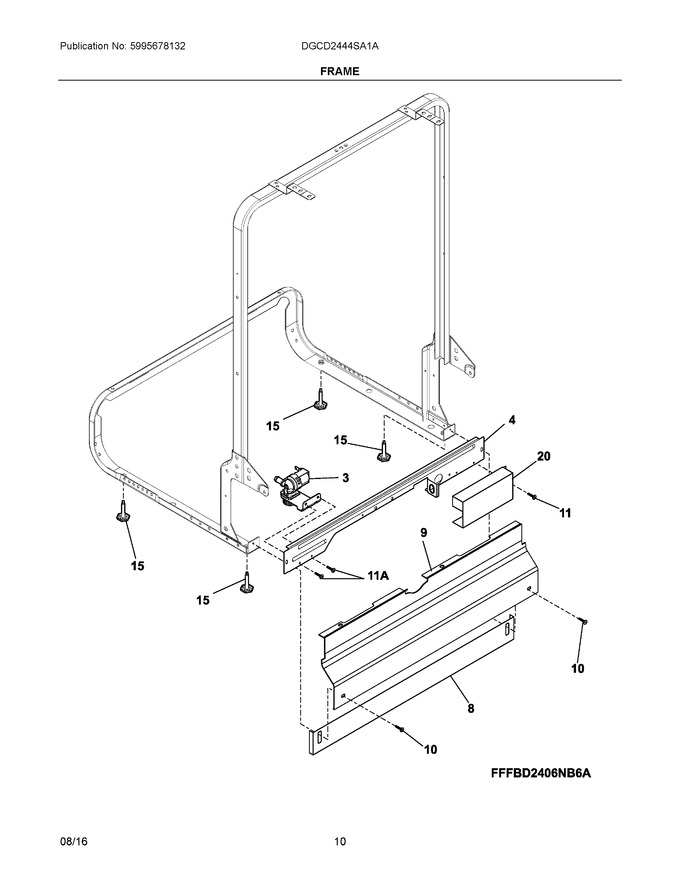

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 807047901 | Valve, Water |
|
Immediately | $ 57.90 | ||||
| 4 | 5304508587 | Brace, Front Frame (Replaces: 154823701) |
|
$ 28.92 | |||||
| 8 | 154745503 | Toeplate, Adjustable, Black |
|
Immediately | $ 15.75 | ||||
| 9 | 5304501484 | Kickplate Assy, Pvc, Black, W/label |
|
Immediately | $ 51.08 | ||||
| 10 | 154754801 | Screw, Toeplate Mtg, 8-18 Ab Hex Hd, Black, (2) |
|
Immediately | $ 7.30 | ||||
| 11 | 134154100 | Screw, #10-32 X 3/8 (Replaces: 154200701) |
|
$ 13.46 | |||||
| 15 | 5304506540 | Leg, Leveling, 1/4-20 |
|
Immediately | $ 10.85 | ||||
| 20 | 154758501 | Cover, Junction Box, W/label |
|
$ 20.84 | |||||
| 11A | 808326801 | Screw, Hex Hd, 8-18 X .4, W/washer (Replaces: 154825401) |
|
$ 2.84 | |||||
| NI | 154041001 | Screw, Plask #1, 10-10 X 9/16 |
|
- | |||||
| NIA | 5304501485 | Insulation, Kickplate |
|
$ 165.85 | |||||
| NIA | 154611101 | Clamp, Hose, 1.29" Open, Worm Gear, (2) (Replaces: 154106801) |
|
$ 12.05 |
