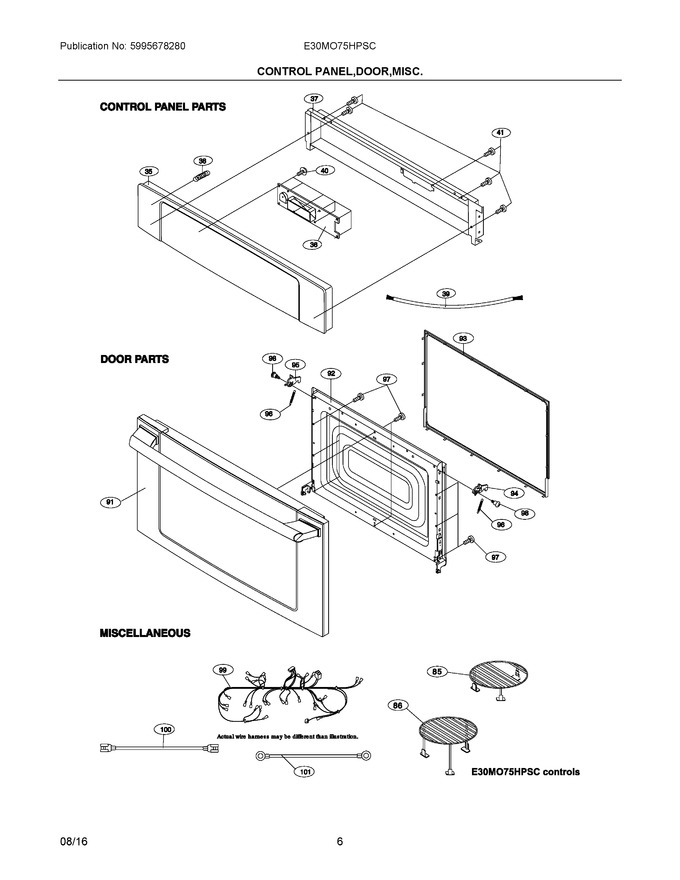

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
35	5304507178		Touch Control Assy, Key Pad				$ 1,669.74
36	5304507179		Display Board, Cpu				$ 611.65
37	5304470558		Bracket, Control Mount				$ 169.39
38	5304470560		Spring, Grounding				$ 15.08
39	5304507180		Wiring Harness, Power Supply		Appelez-nous	-
40	5304456930		Screw, 3 Mm X 6 Mm		Appelez-nous	-
41	5304451517		Screw, 4 Mm X 8 Mm				$ 17.35
85	5304498741		Rack Assembly, Broiling Trivit, Low		Appelez-nous	-
86	5304498742		Rack Assembly, Baking, High		Appelez-nous	-
91	5304471511		Door, Outer, Pro Handle				$ 1,021.13
92	5304471512		Panel, Inner Door				$ 357.92
93	5304470579		Frame, Inner Door, Choke Cover				$ 87.48
94	5304491054		Latch Head, Right Side				$ 54.58
95	5304490142		Latch Head, Left Side			Immediately	$ 58.56
96	5304501834		Spring, Latch Head				$ 41.11
97	5304451561		Screw, 4 Mm X 8 Mm				$ 16.63
98	5304470583		Screw				$ 13.01
99	5304507164		Wiring Harness, Main		Appelez-nous	-
100	5304440331		Wire, High Voltage-a		Appelez-nous	-
101	5304461199		Wire, Ground, Cooling Fan				$ 25.52

    View Diagram in Separate Window       Print Part List
