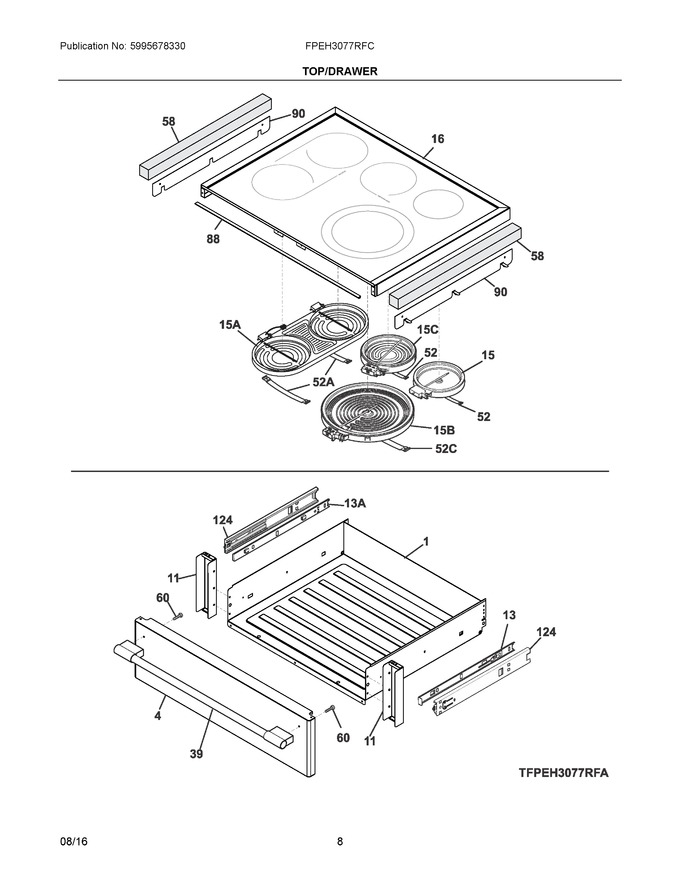

04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	809145604		Drawer, Starage, Black				$ 166.90
4	5304514666		Panel, Drawer Front, Stainless   (Replaces: 809201801)				$ 212.45
11	809089901		Bracket, Panel, Drawer, (2)				$ 24.10
13	318259513		Glide, Warmer, Inner Rh				$ 29.58
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 122.86
16	5304500168		Smoothtop Assembly, Glass/steel, Black/stainless, W/trim				$ 781.67
39	808816703		Handle, Door/drawer, Stainless				$ 182.86
52	318122006		Spring, Element Mtg, Small				$ 66.25
58	5304497192		Insualtion, Cooktop, Side, (2)				$ 12.77
60	5303310510		Screw, 10-24 X 0.625				$ 14.18
88	5304500150		Gasket, Cooktop				$ 37.49
90	5304501940		Shield, Heat, Cooktop, (2)		Appelez-nous	-
124	318330600		Glide, Drawer, Outer/rh & Lh, (2)				$ 77.97
13A	318259512		Glide, Warmer, Inner Lh				$ 29.58
15A	807219901		Element, Bridge, 1800/2600w			Immediately	$ 309.02
15B	316282101		Element, Dual, 9/12", Surface, 1700/2700w, Dual Radiant			Immediately	$ 283.03
15C	140273621015		Element, Surface, Warmer, 100 W   (Replaces: 316289800)			Immediately	$ 35.77
52A	318122008		Spring, Element Mtg, 1800w/3000w				$ 90.80
52C	318122011		Spring, Element Mtg, 1200w/1800w				$ 62.14
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5304501948		Screw, Tr Hd Phd, 8-18 X 3/16				$ 7.79
NI	318147430		Bumper, (2)				$ 18.95
NI	5304520784		Harness, Surface, S2   (Replaces: 5304502432)				$ 133.25
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	316008401		Washer, Handle Screw, Flat   (Replaces: 5304490894)				$ 11.34
