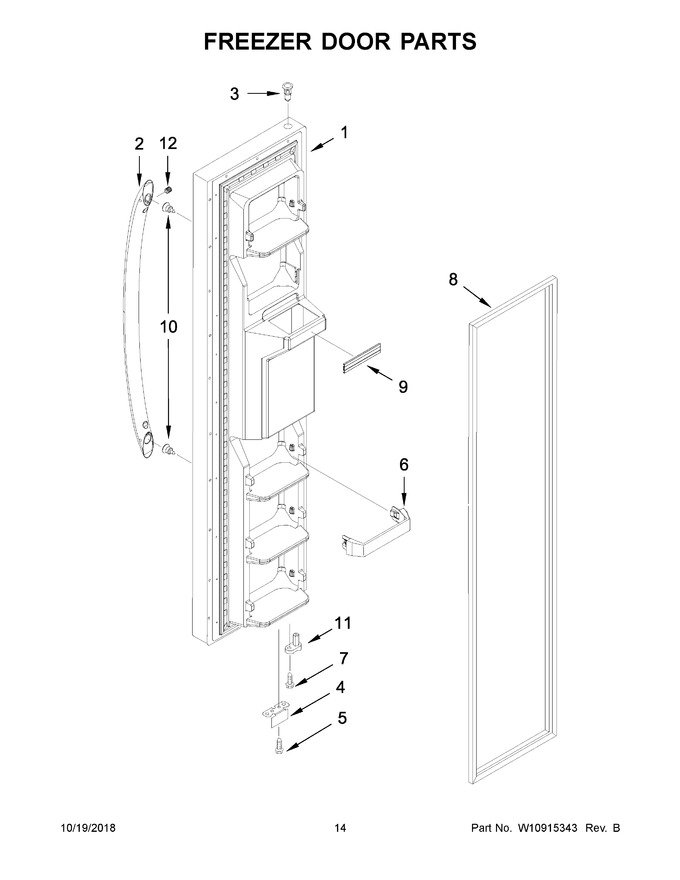

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10763099 | Door, Freezer (includes Item 8) (black) |
|
- | |||||
| 2 | W10805245 | Handle (black) (Replaces: W10713678) |
|
$ 195.00 | |||||
| 3 | WP2182181 | Thimble (Replaces: 2182181) |
|
$ 6.98 | |||||
| 4 | 2306940 | Bracket, Door Stop (silver) |
|
$ 87.37 | |||||
| 5 | WP489483 | Screw (Replaces: 489420) |
|
$ 9.78 | |||||
| 6 | WP2309718 | Trivet (Replaces: 2309718) |
|
$ 52.70 | |||||
| 7 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.04 | |||||
| 8 | 2159082 | Gasket, Door (black) (Replaces: 2309533) |
|
$ 284.99 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: W10307494) |
|
Immediately | $ 20.80 | ||||
| 10 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 10.67 | ||||
| 11 | W10846219 | Thimble, Cam |
|
$ 71.51 | |||||
| 12 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 14.21 |
