02 - Cabinet And Component Parts
03 - Door Parts
04 - Console And Control Parts
05 - Blower And Drive Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

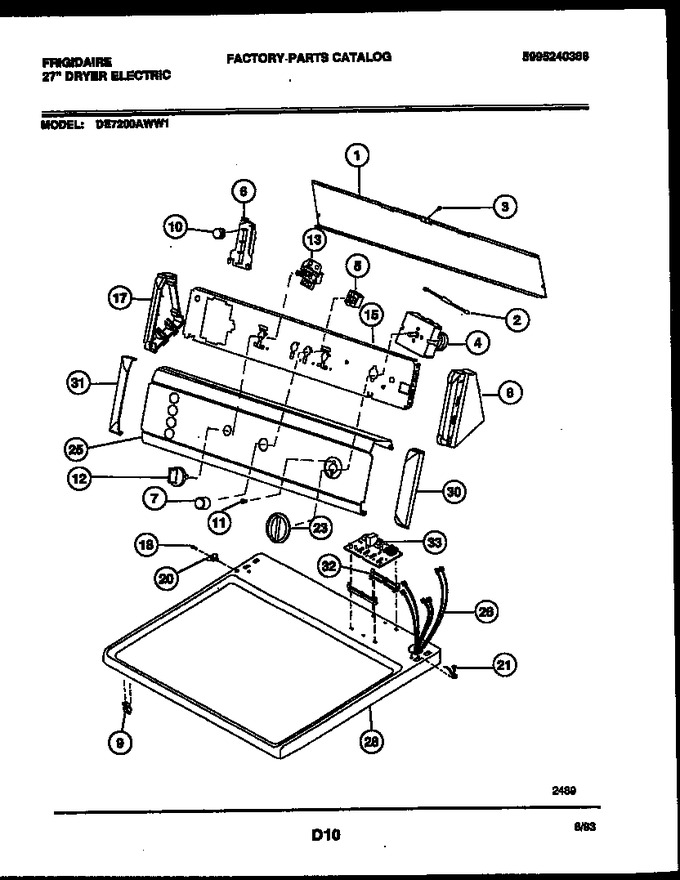

| 1 | 131141701 | Backsheet |
|
- | |||||
| 2 | 3205243 | Resistor-timer |
|
- | |||||
| 3 | 131052100 | Screw (4) |
|
- | |||||
| 4 | 131062600 | Timer |
|
- | |||||
| 5 | 131048000 | Switch, Start |
|
- | |||||
| 6 | 131048200 | Switch-temperature |
|
$ 193.03 | |||||
| 7 | 131141302 | Pushbutton, Almond |
|
- | |||||
| 8 | 131122702 | End Cap-rh-almond |
|
- | |||||
| 9 | 3205821 | Spring Catch |
|
Immediately | $ 35.44 | ||||
| 10 | 131141202 | Pushbutton-almond (4) |
|
- | |||||
| 11 | 218359202 | Screw (Replaces: 5303283289) |
|
$ 10.63 | |||||
| 12 | 131141102 | Knob-rotary-almond |
|
- | |||||
| 13 | 131048300 | Buzzer |
|
- | |||||
| 15 | 131157802 | Bracket-controls |
|
- | |||||
| 17 | 131122712 | End Cap Lh-almond |
|
- | |||||
| 18 | 5303289526 | Screw |
|
- | |||||
| 20 | 5300503065 | Clip |
|
$ 6.09 | |||||
| 21 | 08001689 | Screw |
|
- | |||||
| 21 | 5303207393 | Screw (3) |
|
$ 6.14 | |||||
| 23 | 131141002 | Knob, Timer, Almond |
|
- | |||||
| 25 | 131176400 | Panel-control-almond |
|
- | |||||
| 26 | 131071500 | Harness |
|
- | |||||
| 28 | 131130304 | Panel, Top, Almond |
|
- | |||||
| 30 | 131122602 | Cover, Cap, Rh, Almond |
|
- | |||||
| 31 | 131122612 | Cover, Cap, Lh, Almond |
|
- | |||||
| 32 | 131089800 | Bracket-controls |
|
$ 50.83 | |||||
| 33 | 131072000 | Control Board |
|
- | |||||
| 13A | 3201341 | Harness-buzzer (non-illustrated) |
|
- |
