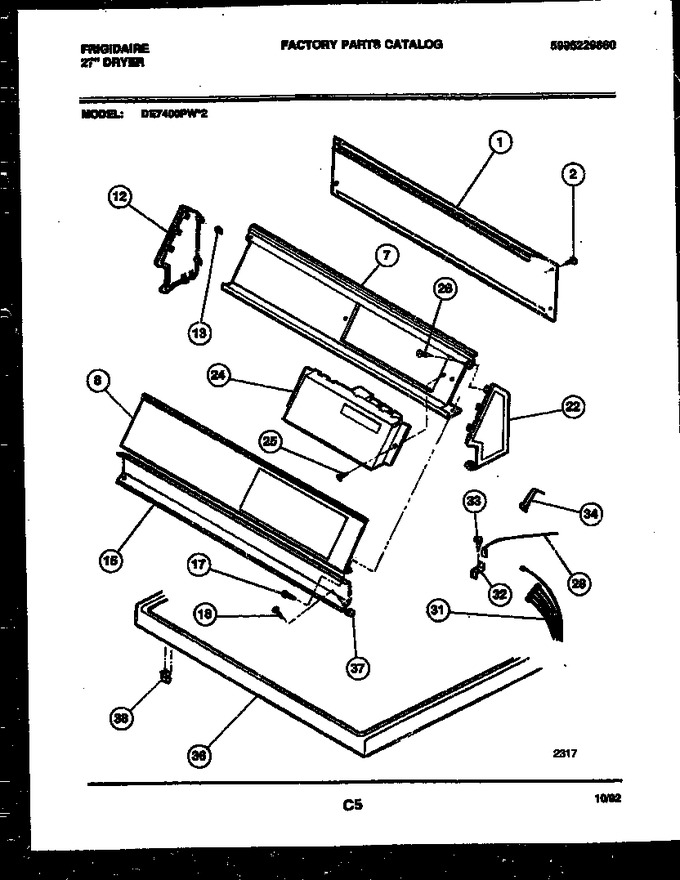

02 - Cabinet And Component Parts


03 - Door Parts


04 - Console And Control Parts


05 - Blower And Drive Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3201322		Backsheet		Appelez-nous	-
2	5303015671		Screw		Appelez-nous	-
7	5303279279		Bracket-control		Appelez-nous	-
8	5303279274		Panel-control		Appelez-nous	-
12	3205874		End Cap - L.h.		Appelez-nous	-
13	5308014350		Clip-end Cap (8)		Appelez-nous	-
15	5303279348		Trimplate-lower		Appelez-nous	-
17	08010782		Screw		Appelez-nous	-
18	5303279342		Screw		Appelez-nous	-
22	3205876		End Cap - R.h.		Appelez-nous	-
24	5303279352		Control-dryer		Appelez-nous	-
25	5303161233		Screw		Appelez-nous	-
26	08010789		Screw		Appelez-nous	-
28	3201385		Ground Wire		Appelez-nous	-
31	131009500		Harness		Appelez-nous	-
32	5379171000		Terminal		Appelez-nous	-
33	5303206864		Screw		Appelez-nous	-
34	08014349		Ground Strap		Appelez-nous	-
36	5303273261		Panel-top-white		Appelez-nous	-
37	5300503065		Nut				$ 6.09
38	3205821		Spring Catch			Immediately	$ 35.44
31A	5303281103		Wire Tie (non-illustrated)		Appelez-nous	-
